Hey guys,
All good ?
In this post I will share with you a need that I had on Friday, where a file server would be down for a few hours for maintenance and I needed to identify which jobs were accessing this server and therefore would be impacted by this maintenance, that is, searching for a string in the SP's code that are called by SQL Agent jobs.
Another example in which this can be very useful is to identify the jobs that access a certain database table, if it needs to undergo any changes or maintenance, for example, and you need this information to evaluate the impacts.
Well, to be able to automate this, I created an SP that will scan all the databases in your instance (using sp_msforeachdb), reading the sys.sql_modules view of each database. After identifying all the SP's or functions that have the particular string you are looking for, the routine cross-references this information with the SQL Agent views to identify which jobs call these SP's.
SP source code
To be able to perform this check, simply use the source code below, which is also available on this GitHub. Feel free to suggest changes and improvements. One of them is that the SP below works when the job calls an SP, which calls another SP and this one has the string we are looking for.
USE [master]
GO
CREATE PROCEDURE [dbo].[stpBusca_String_Rotinas_Job]
@Ds_Busca [varchar](100)
AS
BEGIN
IF (OBJECT_ID('tempdb..#Resultado') IS NOT NULL) DROP TABLE #Resultado
CREATE TABLE #Resultado (
Ds_Database SYSNAME NULL,
Ds_Objeto SYSNAME NULL,
Ds_Schema SYSNAME NULL,
Ds_Tipo VARCHAR(100) NULL
)
DECLARE @Query VARCHAR(MAX) = '
SELECT
DB_NAME(DB_ID(''?'')) AS Ds_Database,
B.name AS Ds_Objeto,
C.name AS Ds_Schema,
B.type_desc AS Ds_Tipo
FROM
[?].sys.sql_modules A WITH(NOLOCK)
JOIN [?].sys.objects B WITH(NOLOCK) ON A.object_id = B.object_id
JOIN [?].sys.schemas C WITH(NOLOCK) ON B.schema_id = C.schema_id
WHERE
A.definition LIKE ''%' + @Ds_Busca + '%''
'
INSERT INTO #Resultado
EXEC master.sys.sp_msforeachdb @Query
SELECT
C.Ds_Database,
C.Ds_Schema,
C.Ds_Objeto,
A.[name] AS job_name,
A.[enabled],
B.step_id,
B.step_name,
B.[database_name],
(CASE WHEN B.last_run_date != 0 THEN msdb.dbo.agent_datetime(B.last_run_date, B.last_run_time) ELSE NULL END) AS last_run,
REPLACE(REPLACE(REPLACE(B.[command], CHAR(10) + CHAR(13), ' '), CHAR(13), ' '), CHAR(10), ' ') AS [ExecutableCommand],
E.[name] AS [JobScheduleName],
CASE
WHEN E.[freq_type] = 64 THEN 'Start automatically when SQL Server Agent starts'
WHEN E.[freq_type] = 128 THEN 'Start whenever the CPUs become idle'
WHEN E.[freq_type] IN (4,8,16,32) THEN 'Recurring'
WHEN E.[freq_type] = 1 THEN 'One Time'
END [ScheduleType],
CASE E.[freq_type]
WHEN 1 THEN 'One Time'
WHEN 4 THEN 'Daily'
WHEN 8 THEN 'Weekly'
WHEN 16 THEN 'Monthly'
WHEN 32 THEN 'Monthly - Relative to Frequency Interval'
WHEN 64 THEN 'Start automatically when SQL Server Agent starts'
WHEN 128 THEN 'Start whenever the CPUs become idle'
END [Occurrence],
CASE E.[freq_type]
WHEN 4 THEN 'Occurs every ' + CAST([freq_interval] AS VARCHAR(3)) + ' day(s)'
WHEN 8 THEN 'Occurs every ' + CAST([freq_recurrence_factor] AS VARCHAR(3)) + ' week(s) on '
+ CASE WHEN E.[freq_interval] & 1 = 1 THEN 'Sunday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 2 = 2 THEN ', Monday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 4 = 4 THEN ', Tuesday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 8 = 8 THEN ', Wednesday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 16 = 16 THEN ', Thursday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 32 = 32 THEN ', Friday' ELSE '' END
+ CASE WHEN E.[freq_interval] & 64 = 64 THEN ', Saturday' ELSE '' END
WHEN 16 THEN 'Occurs on Day ' + CAST([freq_interval] AS VARCHAR(3)) + ' of every ' + CAST(E.[freq_recurrence_factor] AS VARCHAR(3)) + ' month(s)'
WHEN 32 THEN 'Occurs on '
+ CASE E.[freq_relative_interval]
WHEN 1 THEN 'First'
WHEN 2 THEN 'Second'
WHEN 4 THEN 'Third'
WHEN 8 THEN 'Fourth'
WHEN 16 THEN 'Last'
END
+ ' '
+ CASE E.[freq_interval]
WHEN 1 THEN 'Sunday'
WHEN 2 THEN 'Monday'
WHEN 3 THEN 'Tuesday'
WHEN 4 THEN 'Wednesday'
WHEN 5 THEN 'Thursday'
WHEN 6 THEN 'Friday'
WHEN 7 THEN 'Saturday'
WHEN 8 THEN 'Day'
WHEN 9 THEN 'Weekday'
WHEN 10 THEN 'Weekend day'
END
+ ' of every ' + CAST(E.[freq_recurrence_factor] AS VARCHAR(3)) + ' month(s)'
END AS [Recurrence],
CASE E.[freq_subday_type]
WHEN 1 THEN 'Occurs once at ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_start_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')
WHEN 2 THEN 'Occurs every ' + CAST(E.[freq_subday_interval] AS VARCHAR(3)) + ' Second(s) between ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_start_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')+ ' & ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_end_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')
WHEN 4 THEN 'Occurs every ' + CAST(E.[freq_subday_interval] AS VARCHAR(3)) + ' Minute(s) between ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_start_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')+ ' & ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_end_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')
WHEN 8 THEN 'Occurs every ' + CAST(E.[freq_subday_interval] AS VARCHAR(3)) + ' Hour(s) between ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_start_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')+ ' & ' + STUFF(STUFF(RIGHT('000000' + CAST(E.[active_end_time] AS VARCHAR(6)), 6), 3, 0, ':'), 6, 0, ':')
END [Frequency],
STUFF(STUFF(CAST(E.[active_start_date] AS VARCHAR(8)), 5, 0, '-'), 8, 0, '-') AS [ScheduleUsageStartDate],
STUFF(STUFF(CAST(E.[active_end_date] AS VARCHAR(8)), 5, 0, '-'), 8, 0, '-') AS [ScheduleUsageEndDate]
FROM
msdb.dbo.sysjobs A WITH(NOLOCK)
JOIN msdb.dbo.sysjobsteps B WITH(NOLOCK) ON A.job_id = B.job_id
JOIN #Resultado C ON B.command LIKE '%' + C.Ds_Objeto + '%'
LEFT JOIN [msdb].[dbo].[sysjobschedules] AS D ON [A].[job_id] = D.[job_id]
LEFT JOIN [msdb].[dbo].[sysschedules] AS E ON D.[schedule_id] = E.[schedule_id]
WHERE
C.Ds_Database = B.[database_name]
OR B.command LIKE '%' + C.Ds_Database + '%'
END

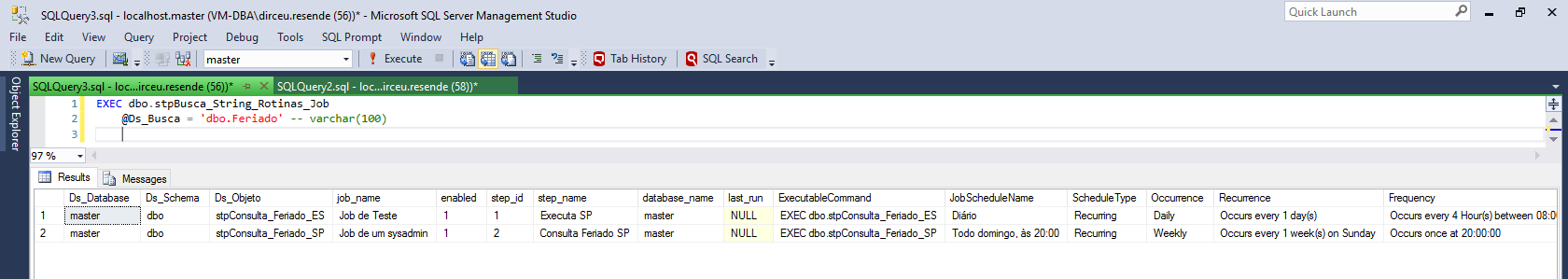

Usage example:
CREATE PROCEDURE dbo.stpConsulta_Feriado_SP
AS
BEGIN
SELECT * FROM dirceuresende.dbo.Feriado
WHERE Sg_UF = 'SP'
END
GO
CREATE PROCEDURE dbo.stpConsulta_Feriado_ES
AS
BEGIN
SELECT * FROM dirceuresende.dbo.Feriado
WHERE Sg_UF = 'ES'
END
That's it, folks! I hope you enjoyed this SP, a hug and see you in the next post.
