Hey guys!!
In this post I come to bring a solution to a problem that I see almost every day in Whatsapp and Telegram groups: Sending the content of one or more tables or queries in the body of an email as HTML.

The procedure we are going to use in this post to take the contents of the table and transform it into HTML I had already shared in the article How to export data from a SQL Server table to HTML, but I see that whenever I sent the article, people still had difficulty sending the email, so I decided to create this article to resolve this doubt once and for all.

If you don't know how to configure Database Mail to start sending emails through SQL Server or are having difficulty sending simple emails, access the article SQL Server – How to activate and configure Database mail to send and monitor emails through the database (sp_send_dbmail).

Using sp_send_dbmail itself and the @query parameter

Probably one of the most used ways to send the result of a table by email is using the @query parameter of sp_send_dbmail.

Example:

EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = N'Teste', -- nvarchar(max)
    @body_format = 'html',

    -- Parâmetros específicos do envio da query
    @query = N'select top 20 * from [dirceuresende].[dbo].[Clientes]', -- nvarchar(max)
    @query_result_header = 1, -- bit
    @exclude_query_output = 1, -- bit
    @query_result_width = 50, -- int
    @query_result_separator = '|' -- char(1)

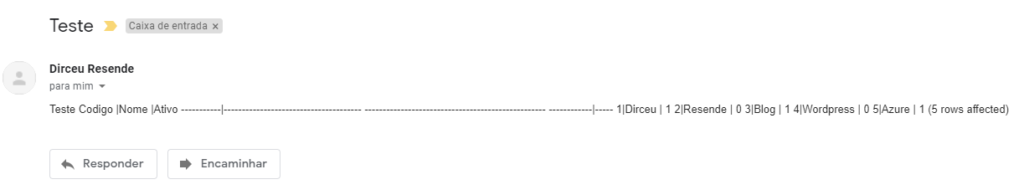

Result:

As you can see, although it is extremely simple to use, the result is very poor for data visualization.

Using sp_send_dbmail itself and the @attach_query_result_as_file parameter

I'll try sending this content as an attachment to see if it improves. Maybe by exporting to file, the output will be a little better...

Example:

EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = N'Teste', -- nvarchar(max)
    @body_format = 'html',

    -- Parâmetros específicos do envio da query
    @query = N'select top 20 * from [dirceuresende].[dbo].[Clientes]', -- nvarchar(max)
    @query_result_header = 1, -- bit
    @exclude_query_output = 1, -- bit
    @query_result_width = 50, -- int
    @query_result_separator = '|', -- char(1)

    -- Transformando em arquivo
    @attach_query_result_as_file = 1,
    @query_attachment_filename = 'arquivo.txt'

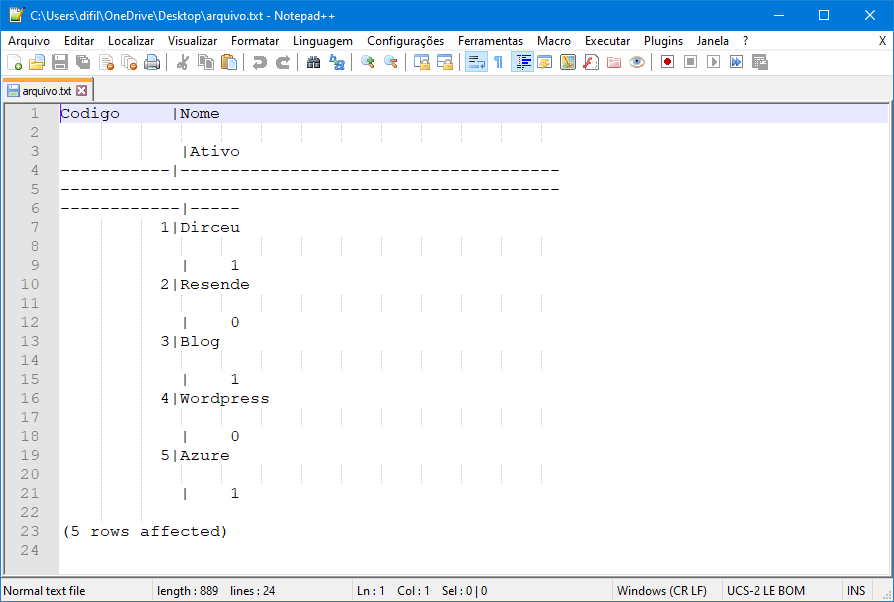

Result:

Another very bad result... It didn't improve much.

Using XML to create a variable with the result in HTML

Let's use another approach then to try to export the data from the table and send it in an email so that it is easy to view the data.

Example:

-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX);

SET @HTML = '
<table border="1">
    <tr>
        <th>Codigo</th>
        <th>Nome</th>
        <th>Ativo?</th>
    </tr>' +
    CAST (
    (
        SELECT TOP 20
            td = Codigo, '',
            td = Nome, '',
            td = Ativo
        FROM [dirceuresende].[dbo].[Clientes]
        FOR XML PATH('tr'), TYPE
    ) AS NVARCHAR(MAX) ) + '
</table>';


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

Result:

Oops!! It's already getting much better! Now I'm going to customize it a little just to show you that you can play with the design of the messages.

Example:

-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX);

SET @HTML = '
<html>
<head>
    <title>Titulo</title>
    <style type="text/css">
        table { padding:0; border-spacing: 0; border-collapse: collapse; }
        thead { background: #00B050; border: 1px solid #ddd; }
        th { padding: 10px; font-weight: bold; border: 1px solid #000; color: #fff; }
        tr { padding: 0; }
        td { padding: 5px; border: 1px solid #cacaca; margin:0; text-align: center; }
    </style>
</head>

<h2>Lista de Usuários do Sistema</h2>
Veja a lista dos usuários permitidos no sistema:<br/><br/>

<table>
    <thead>
        <tr>
            <th>Codigo</th>
            <th>Nome</th>
            <th>Ativo?</th>
        </tr>
    </thead>

    <tbody>' +
    CAST (
    (
        SELECT TOP 20
            td = Codigo, '',
            td = Nome, '',
            td = Ativo
        FROM [dirceuresende].[dbo].[Clientes]
        FOR XML PATH('tr'), TYPE
    ) AS NVARCHAR(MAX) ) + '
    </tbody>
</table>

<br/><br/>
Em caso de dúvidas, favor entrar em contato<br/><br/>
Atenciosamente,<br/>

<img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/>
DBA';


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

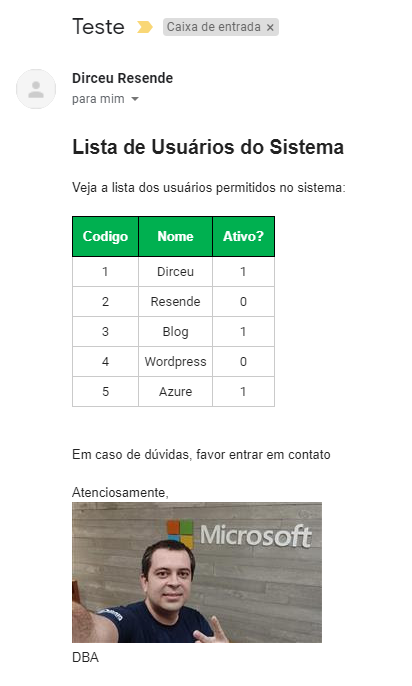

Result:

This email is turning out pretty cool, huh?? What if I want to send more than one table in the same email? Is there any way???

Example:

-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX);

SET @HTML = '
<html>
<head>
    <title>Titulo</title>
    <style type="text/css">
        table { padding:0; border-spacing: 0; border-collapse: collapse; }
        thead { background: #00B050; border: 1px solid #ddd; }
        th { padding: 10px; font-weight: bold; border: 1px solid #000; color: #fff; }
        tr { padding: 0; }
        td { padding: 5px; border: 1px solid #cacaca; margin:0; text-align: center; }
    </style>
</head>

<h2>Lista de Usuários do Sistema</h2>
Veja a lista dos usuários permitidos no sistema:<br/><br/>

<table>
    <thead>
        <tr>
            <th>Codigo</th>
            <th>Nome</th>
            <th>Ativo?</th>
        </tr>
    </thead>

    <tbody>' +
    CAST (
    (
        SELECT TOP 20
            td = Codigo, '',
            td = Nome, '',
            td = Ativo
        FROM [dirceuresende].[dbo].[Clientes]
        FOR XML PATH('tr'), TYPE
    ) AS NVARCHAR(MAX) ) + '
    </tbody>
</table>

<br/><br/>
<h2>Lista de dos Objetos no Banco</h2>
Veja a lista dos objetos que existem nesse banco:<br/><br/>

<table>
    <thead>
        <tr>
            <th>Nome</th>
            <th>ID do Objeto</th>
            <th>Data de Criação</th>
            <th>Objeto de Sistema?</th>
            <th>Lock Escalation</th>
            <th>Durability</th>
            <th>Temporal Type</th>
        </tr>
    </thead>

    <tbody>' +


    CAST (
    (
        SELECT TOP 20
            td = [name] , '',
            td = [object_id], '',
            td = CONVERT(VARCHAR(19), create_date, 103), '',
            td = (CASE WHEN is_ms_shipped = 1 THEN 'true' ELSE 'false' END), '',
            td = lock_escalation_desc, '',
            td = durability_desc, '',
            td = temporal_type_desc
        FROM dirceuresende.sys.tables
        FOR XML PATH('tr'), TYPE
    ) AS NVARCHAR(MAX) ) + '
    </tbody>
</table>

<br/><br/>
Em caso de dúvidas, favor entrar em contato<br/><br/>
Atenciosamente,<br/>

<img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/>
DBA';


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

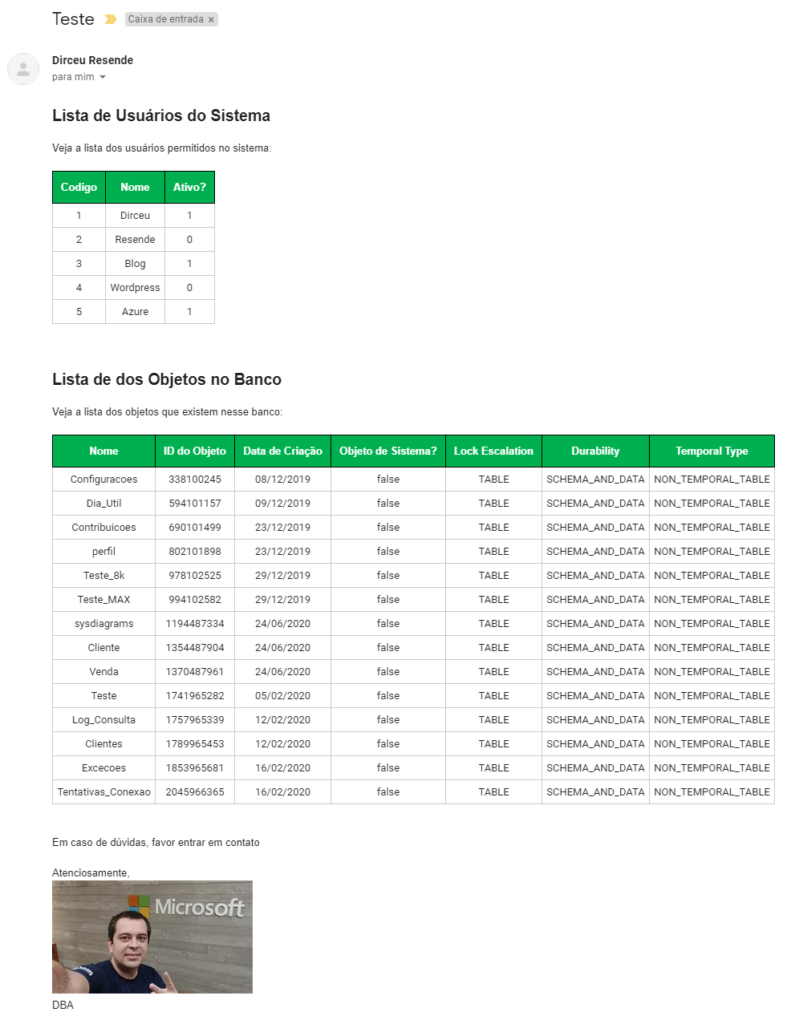

Result:

Easy Mode: stpExporta_Table_HTML_Output

Thinking about making it easier to send the content of a table or query via email as HTML, I decided to create the Stored Procedure stpExporta_Table_HTML_Output to automate the transformation of the result of a table or query to HTML and be able to use this to create a file or send the generated HTML as the body of an email.

This procedure had already been shared in the article How to export data from a SQL Server table to HTML, but I decided to share it again here, focusing on sending HTML emails.

stpExporta_Table_HTML_Output code:
Click here to view the source code

CREATE PROCEDURE [dbo].[stpExporta_Tabela_HTML_Output]
    @Ds_Tabela [varchar](max),
    @Fl_Aplica_Estilo_Padrao BIT = 1,
    @Ds_Alinhamento VARCHAR(10) = 'left',
    @Ds_OrderBy VARCHAR(MAX) = '',
    @Ds_Saida VARCHAR(MAX) OUTPUT
AS
BEGIN


    SET NOCOUNT ON


    DECLARE
        @query NVARCHAR(MAX),
        @Database sysname,
        @Nome_Tabela sysname



    IF (LEFT(@Ds_Tabela, 1) = '#')
    BEGIN
        SET @Database = 'tempdb.'
        SET @Nome_Tabela = @Ds_Tabela
    END
    ELSE BEGIN
        SET @Database = LEFT(@Ds_Tabela, CHARINDEX('.', @Ds_Tabela))
        SET @Nome_Tabela = SUBSTRING(@Ds_Tabela, LEN(@Ds_Tabela) - CHARINDEX('.', REVERSE(@Ds_Tabela)) + 2, LEN(@Ds_Tabela))
    END


    SET @query = '
    SELECT ORDINAL_POSITION, COLUMN_NAME, DATA_TYPE, CHARACTER_MAXIMUM_LENGTH, NUMERIC_PRECISION, NUMERIC_SCALE
    FROM ' + @Database + 'INFORMATION_SCHEMA.COLUMNS
    WHERE TABLE_NAME = ''' + @Nome_Tabela + '''
    ORDER BY ORDINAL_POSITION'


    IF (OBJECT_ID('tempdb..#Colunas') IS NOT NULL) DROP TABLE #Colunas
    CREATE TABLE #Colunas (
        ORDINAL_POSITION int,
        COLUMN_NAME sysname,
        DATA_TYPE nvarchar(128),
        CHARACTER_MAXIMUM_LENGTH int,
        NUMERIC_PRECISION tinyint,
        NUMERIC_SCALE int
    )

    INSERT INTO #Colunas
    EXEC(@query)



    IF (@Fl_Aplica_Estilo_Padrao = 1)
    BEGIN

    SET @Ds_Saida = '<html>
<head>
    <title>Titulo</title>
    <style type="text/css">
        table { padding:0; border-spacing: 0; border-collapse: collapse; }
        thead { background: #00B050; border: 1px solid #ddd; }
        th { padding: 10px; font-weight: bold; border: 1px solid #000; color: #fff; }
        tr { padding: 0; }
        td { padding: 5px; border: 1px solid #cacaca; margin:0; text-align:' + @Ds_Alinhamento + '; }
    </style>
</head>'

    END



    SET @Ds_Saida = ISNULL(@Ds_Saida, '') + '
<table>
    <thead>
        <tr>'


    -- Cabeçalho da tabela
    DECLARE
        @contadorColuna INT = 1,
        @totalColunas INT = (SELECT COUNT(*) FROM #Colunas),
        @nomeColuna sysname,
        @tipoColuna sysname


    WHILE(@contadorColuna <= @totalColunas)
    BEGIN

        SELECT @nomeColuna = COLUMN_NAME
        FROM #Colunas
        WHERE ORDINAL_POSITION = @contadorColuna


        SET @Ds_Saida = ISNULL(@Ds_Saida, '') + '
            <th>' + @nomeColuna + '</th>'


        SET @contadorColuna = @contadorColuna + 1

    END



    SET @Ds_Saida = ISNULL(@Ds_Saida, '') + '
        </tr>
    </thead>
    <tbody>'



    -- Conteúdo da tabela

    DECLARE @saida VARCHAR(MAX)

    SET @query = '
SELECT @saida = (
    SELECT '


    SET @contadorColuna = 1

    WHILE(@contadorColuna <= @totalColunas)
    BEGIN

        SELECT
            @nomeColuna = COLUMN_NAME,
            @tipoColuna = DATA_TYPE
        FROM
            #Colunas
        WHERE
            ORDINAL_POSITION = @contadorColuna



        IF (@tipoColuna IN ('int', 'bigint', 'float', 'numeric', 'decimal', 'bit', 'tinyint', 'smallint', 'integer'))
        BEGIN

            SET @query = @query + '
    ISNULL(CAST([' + @nomeColuna + '] AS VARCHAR(MAX)), '''') AS [td]'

        END
        ELSE BEGIN

            SET @query = @query + '
    ISNULL([' + @nomeColuna + '], '''') AS [td]'

        END


        IF (@contadorColuna < @totalColunas)
            SET @query = @query + ','


        SET @contadorColuna = @contadorColuna + 1

    END



    SET @query = @query + '
FROM ' + @Ds_Tabela + (CASE WHEN ISNULL(@Ds_OrderBy, '') = '' THEN '' ELSE '
ORDER BY ' END) + @Ds_OrderBy + '
FOR XML RAW(''tr''), Elements
)'


    EXEC tempdb.sys.sp_executesql
        @query,
        N'@saida NVARCHAR(MAX) OUTPUT',
        @saida OUTPUT


    -- Identação
    SET @saida = REPLACE(@saida, '<tr>', '
        <tr>')

    SET @saida = REPLACE(@saida, '<td>', '
            <td>')

    SET @saida = REPLACE(@saida, '</tr>', '
        </tr>')


    SET @Ds_Saida = ISNULL(@Ds_Saida, '') + @saida



    SET @Ds_Saida = ISNULL(@Ds_Saida, '') + '
    </tbody>
</table>'


END
GO

Its use is very simple:

-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX)

EXEC dbo.stpExporta_Tabela_HTML_Output
    @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max)
    @Ds_Saida = @HTML OUTPUT -- varchar(max)


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

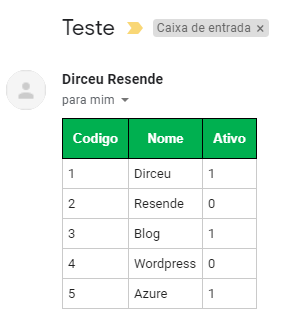

Result:

If I want to change the horizontal alignment, just use the @Ds_Alinhamento parameter:

-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX)

EXEC dbo.stpExporta_Tabela_HTML_Output
    @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max)
    @Ds_Saida = @HTML OUTPUT, -- varchar(max)
    @Ds_Alinhamento = 'center' -- parâmetros: left, center e right


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

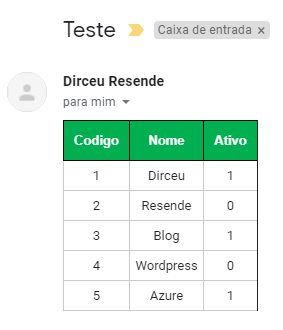

Result:

If you want to use the result of a query instead of the contents of an entire table, simply use a global temporary table (##table), as the local temporary table (#table) will not work:

-- Cria uma nova tabela com o resultado da query desejada
IF (OBJECT_ID('tempdb..##Teste') IS NOT NULL) DROP TABLE ##Teste
SELECT Codigo, Nome
INTO ##Teste
FROM dirceuresende.dbo.Clientes
WHERE Codigo > 2


-- Transforma o conteúdo da query em HTML
DECLARE @HTML VARCHAR(MAX)

EXEC dbo.stpExporta_Tabela_HTML_Output
    @Ds_Tabela = '##Teste', -- varchar(max)
    @Ds_Saida = @HTML OUTPUT -- varchar(max)

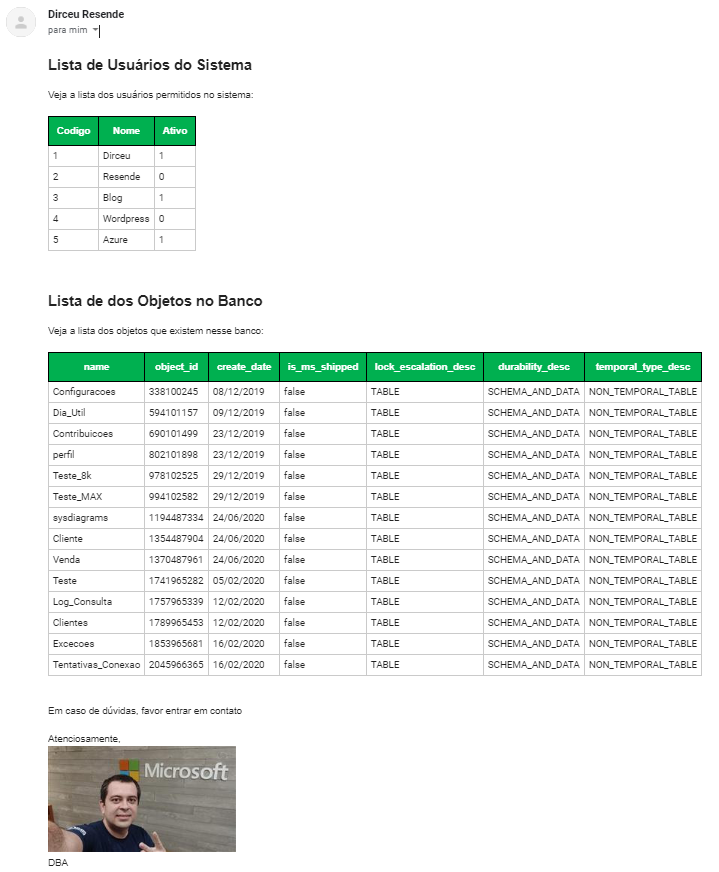

And to send the same email as the example using XML, it would look like this:

DECLARE
    @HTML VARCHAR(MAX),
    @HTML1 VARCHAR(MAX),
    @HTML2 VARCHAR(MAX)


-- Transforma o conteúdo da query em HTML
EXEC dbo.stpExporta_Tabela_HTML_Output
    @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max)
    @Ds_Saida = @HTML1 OUTPUT -- varchar(max)



IF (OBJECT_ID('tempdb..##Tabela2') IS NOT NULL) DROP TABLE ##Tabela2
SELECT TOP 20
    [name],
    [object_id],
    CONVERT(VARCHAR(19), create_date, 103) AS create_date,
    (CASE WHEN is_ms_shipped = 1 THEN 'true' ELSE 'false' END) AS is_ms_shipped,
    lock_escalation_desc,
    durability_desc,
    temporal_type_desc
INTO
    ##Tabela2
FROM
    dirceuresende.sys.tables


EXEC dbo.stpExporta_Tabela_HTML_Output
    @Ds_Tabela = '##Tabela2', -- varchar(max)
    @Ds_Saida = @HTML2 OUTPUT, -- varchar(max)
    @Fl_Aplica_Estilo_Padrao = 0 -- Utilizar 0 se for utilizar a Procedure mais de 1x


SET @HTML = '
<h2>Lista de Usuários do Sistema</h2>
Veja a lista dos usuários permitidos no sistema:<br/><br/>' + ISNULL(@HTML1, '') + '

<br/><br/>
<h2>Lista de dos Objetos no Banco</h2>
Veja a lista dos objetos que existem nesse banco:<br/><br/>' + ISNULL(@HTML2, '') + '


<br/><br/>
Em caso de dúvidas, favor entrar em contato<br/><br/>
Atenciosamente,<br/>

<img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/>
DBA';


-- Envia o e-mail
EXEC msdb.dbo.sp_send_dbmail
    @profile_name = 'ProfileEnvioEmail', -- sysname
    @recipients = '[email protected]', -- varchar(max)
    @subject = N'Teste', -- nvarchar(255)
    @body = @HTML, -- nvarchar(max)
    @body_format = 'html'

Result:

And that's it, folks!
I hope you liked this tip and see you in the next post.
