SQL Server - How to create code versioning for your Stored Procedures in HTML with change comments

Hey guys!

In this article I will share with you how to create a code version of your Stored Procedures in HTML and with comments on the change. In the past, I had already created the post How to create an Audit trigger to log object manipulation in SQL Server, which shows how to record all changes made to a database in a database table, saving information about who made the change, when the change was made, which object was changed, and the DDL/DCL T-SQL script used to make this change in the database.

In this post I go a little further than that, creating a trigger that logs changes to a table as well, but forces the use of a specific tag that informs the reason for the change in this Stored Procedure (it does not allow changing SP's without the reason or using the previous reason) and at the end of the update, it generates HTML pages organized by object with all the documentation for that object and the history of changes.

Source code of objects used in this article

View information

Table used

Log_Procedures

IF (OBJECT_ID('dbo.Log_Procedures') IS NULL)
BEGIN

    -- DROP TABLE dbo.Log_Procedures
    CREATE TABLE dbo.Log_Procedures (
        Id_Auditoria INT IDENTITY(1,1),
        Dt_Evento DATETIME NOT NULL,
        Nm_Procedure VARCHAR(100),
        Nm_Login VARCHAR(100),
        Ds_Procedure VARCHAR(MAX),
        Ds_Alt XML,
        Ds_Doc XML,
        Ds_Query XML
    )

    CREATE CLUSTERED INDEX SK01_Log_Procedures ON dbo.Log_Procedures(Id_Auditoria)

END

Functions used

fncDocumentacao_BuscaTag

CREATE FUNCTION [dbo].[fncDocumentacao_BuscaTag] (
    @Ds_Procedure VARCHAR(MAX),
    @Nm_Tag VARCHAR(50),
    @Nm_Wrap VARCHAR(50) = NULL
)
RETURNS XML
AS BEGIN

    DECLARE @Ds_Bloco VARCHAR(MAX) = ''

    DECLARE @Tag1 VARCHAR(MAX) = '<' + @Nm_Tag + '>'
    DECLARE @Tag2 VARCHAR(MAX) = '</' + @Nm_Tag + '>'

    DECLARE @achou INT = 1

    WHILE (@achou = 1)
    BEGIN

        SET @achou = 0

        DECLARE @Pos1 INT, @Pos2 INT, @Pos3 INT

        SET @Pos1 = CHARINDEX(@Tag1, @Ds_Procedure)
        SET @Pos2 = CHARINDEX(@Tag2, @Ds_Procedure)

        IF (@Pos1 > 0 AND @Pos2 > 0)
        BEGIN
            SET @Pos3 = @Pos2 - @Pos1 + LEN(@Tag2)
            SET @Ds_Bloco = @Ds_Bloco + SUBSTRING(@Ds_Procedure, @Pos1, @Pos3)
            SET @Ds_Procedure = SUBSTRING(@Ds_Procedure, @Pos2 + LEN(@Tag2), LEN(@Ds_Procedure))
            SET @achou = 1
        END

    END

    IF (@Nm_Wrap IS NOT NULL AND @Ds_Bloco <> '') SET @Ds_Bloco = '<' + @Nm_Wrap + '>' + @Ds_Bloco + '</' + @Nm_Wrap + '>'

    DECLARE @Ds_Retorno XML
    SET @Ds_Retorno = @Ds_Bloco

    RETURN @Ds_Retorno

END
GO

Stored Procedures used

stpDOC_geraBloco_Versoes

CREATE PROCEDURE [dbo].[stpDOC_geraBloco_Versoes] (
    @Nm_Procedure VARCHAR(MAX),
    @Id_Log_Referencia INT,
    @bloco VARCHAR(MAX) OUTPUT
) AS
BEGIN

    SET @bloco = '
    <div class="divTitulo azul">
        <b>Histórico de Versões</b>
    </div>

    <table class="tabResult" id="tabVersoes" cellpadding=0 cellspacing=0 style="width:100%">
        <thead>
            <tr>
                <td align="center" style="width:60px">Versão</td>
                <td align="center" style="width:160px">Data</td>
                <td style="width:280px">Autor</td>
                <td align="center" style="width:60px">Chamado</td>
                <td>Motivo</td>
            </tr>
        </thead>
        <tbody>'


    IF (OBJECT_ID('TempDB..#Versoes') IS NOT NULL) DROP TABLE #Versoes
    SELECT *
    INTO #Versoes
    FROM dbo.Log_Procedures WITH(NOLOCK)
    WHERE Nm_Procedure = @Nm_Procedure
    ORDER BY Id_Auditoria DESC


    WHILE EXISTS (SELECT * FROM #Versoes)
    BEGIN

        DECLARE @Id_Log INT, @Dt_Log DATETIME, @Nm_Login VARCHAR(MAX), @Ds_Alt XML, @Ds_Doc XML

        SELECT TOP(1)
            @Id_Log = Id_Auditoria,
            @Dt_Log = Dt_Evento,
            @Nm_Login = Nm_Login,
            @Ds_Alt = Ds_Alt,
            @Ds_Doc = Ds_Doc
        FROM
            #Versoes
        ORDER BY
            Id_Auditoria DESC

        DECLARE @vAtual varchar(max)
        SELECT @vAtual = COUNT(*) FROM #Versoes

        DECLARE @Alt_Texto varchar(max), @Alt_Chamado varchar(max)
        SET @Alt_Texto = IsNull(@Ds_Alt.value('(/alt/text())[1]','varchar(max)'),'')
        SET @Alt_Chamado = IsNull(@Ds_Doc.value('(/doc/chamado)[1]','varchar(max)'),'')

        DECLARE @corBG varchar(max) = 'white'
        IF (@Id_Log = @Id_Log_Referencia) SET @corBg = 'lightgray'


        SET @bloco = @bloco + '
            <tr style="background:' + @corBG + '">
                <td align="center">' + @vAtual + '</td>
                <td align="center"><a href="./' + CAST(@Id_Log as varchar(max))+'.html">' + CONVERT(VARCHAR(10), @Dt_Log, 103) +  ' ' + CONVERT(VARCHAR(8), @Dt_Log, 114) + '</a></td>
                <td>' + @Nm_Login + '</td>
                <td align="center">' + @Alt_Chamado + '</td>
                <td>' + @Alt_Texto + '</td>
            </tr>'


        DELETE #Versoes WHERE Id_Auditoria = @Id_Log

    END

    SET @bloco = @bloco+ '
        </tbody>
    </table>'

END

stpWrite_File_FSO

CREATE PROCEDURE [dbo].[stpEscreve_Arquivo_FSO] (
    @String VARCHAR(MAX),
    @Ds_Arquivo VARCHAR(1501)
)
AS
BEGIN

    DECLARE
        @objFileSystem INT,
        @objTextStream INT,
        @objErrorObject INT,
        @strErrorMessage VARCHAR(1000),
        @Command VARCHAR(1000),
        @hr INT

    SET NOCOUNT ON

    SELECT
        @strErrorMessage = 'opening the File System Object'

    EXECUTE @hr = sp_OACreate
        'Scripting.FileSystemObject',
        @objFileSystem OUT


    IF @HR = 0
        SELECT
            @objErrorObject = @objFileSystem,
            @strErrorMessage = 'Creating file "' + @Ds_Arquivo + '"'


    IF @HR = 0
        EXECUTE @hr = sp_OAMethod
            @objFileSystem,
            'CreateTextFile',
            @objTextStream OUT,
            @Ds_Arquivo,
            2,
            True

    IF @HR = 0
        SELECT
            @objErrorObject = @objTextStream,
            @strErrorMessage = 'writing to the file "' + @Ds_Arquivo + '"'


    IF @HR = 0
        EXECUTE @hr = sp_OAMethod
            @objTextStream,
            'Write',
            NULL,
            @String


    IF @HR = 0
        SELECT
            @objErrorObject = @objTextStream,
            @strErrorMessage = 'closing the file "' + @Ds_Arquivo + '"'


    IF @HR = 0
        EXECUTE @hr = sp_OAMethod
            @objTextStream,
            'Close'


    IF @hr <> 0
    BEGIN

        DECLARE
            @Source VARCHAR(255),
            @Description VARCHAR(255),
            @Helpfile VARCHAR(255),
            @HelpID INT

        EXECUTE sp_OAGetErrorInfo
            @objErrorObject,
            @source OUTPUT,
            @Description OUTPUT,
            @Helpfile OUTPUT,
            @HelpID OUTPUT


        SELECT
            @strErrorMessage = 'Error whilst ' + COALESCE(@strErrorMessage, 'doing something') + ', ' + COALESCE(@Description, '')


        RAISERROR (@strErrorMessage,16,1)

    END


    EXECUTE sp_OADestroy
        @objTextStream

    EXECUTE sp_OADestroy
        @objTextStream

END

stpDOC_Gera_Files

CREATE PROCEDURE [dbo].[stpDOC_Gera_Arquivos] (
    @Ds_Caminho VARCHAR(500),
    @Fl_Todos INT = 0
)
AS
BEGIN


    SET NOCOUNT ON


    IF (OBJECT_ID('TempDB..#Procedures') IS NOT NULL) DROP TABLE #Procedures
    SELECT Nm_Procedure, Id_Auditoria
    INTO #Procedures
    FROM dbo.Log_Procedures WITH(NOLOCK)

    IF (OBJECT_ID('TempDB..#Ultimo_Log') IS NOT NULL) DROP TABLE #Ultimo_Log
    SELECT Nm_Procedure, MAX(Id_Auditoria) AS Id_Auditoria
    INTO #Ultimo_Log
    FROM #Procedures
    GROUP BY Nm_Procedure

    IF (@Fl_Todos = 0) DELETE #Procedures WHERE Id_Auditoria NOT IN (SELECT Id_Auditoria FROM #Ultimo_Log)

    DECLARE @Html_index varchar(max) = '
    <!DOCTYPE html>
    <html>
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title>Documentação</title>
    </head>

    <body style="font-family:Verdana; font-size:14px">
        <h2>Versionamento de Stored Procedures</h2>
        <ul>
    '


    DECLARE @Nm_Arquivo VARCHAR(100)

    WHILE EXISTS (SELECT * FROM #Procedures)
    BEGIN

        DECLARE @Nm_Procedure varchar(max), @Id_Auditoria int, @Id_Max int
        SELECT TOP(1) @Nm_Procedure = Nm_Procedure, @Id_Auditoria = Id_Auditoria FROM #Procedures A
        SELECT @Id_Max = Id_Auditoria FROM #Ultimo_Log WHERE Nm_Procedure = @Nm_Procedure

        DECLARE @Nm_Login varchar(max), @Ds_Procedure varchar(max), @Dt_Log datetime, @Ds_Alt xml, @Ds_Doc xml, @Ds_Steps xml

        SELECT
            @Nm_Login = Nm_Login,
            @Ds_Procedure = Ds_Procedure,
            @Dt_Log = Dt_Evento,
            @Ds_Alt = Ds_Alt,
            @Ds_Doc = Ds_Doc
        FROM
            dbo.Log_Procedures A WITH(NOLOCK)
        WHERE
            Nm_Procedure = @Nm_Procedure
            AND Id_Auditoria = @Id_Auditoria


        DECLARE @Doc_Titulo varchar(max), @Doc_Descricao varchar(max)
        SET @Doc_Titulo = IsNull(@Ds_Doc.value('(/doc/titulo)[1]','varchar(max)'),@Nm_Procedure)
        SET @Doc_Descricao = IsNull(@Ds_Doc.value('(/doc/descricao)[1]','varchar(max)'),'<red>/doc/descricao em branco ou não definido.</red>')

        DECLARE @bloco_Versoes varchar(max) = ''
        EXEC dbo.stpDOC_geraBloco_Versoes @Nm_Procedure, @Id_Auditoria, @bloco_Versoes OUT

        DECLARE @Html varchar(max)
        SET @Html =
        '
        <!DOCTYPE html>
        <html>

            <head>
                <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
                <title>Documentação</title>

                <style type="text/css">
                    .tabResult thead {
                        background: #03a9f4;
                        color: #fff;
                        font-weight: bold;
                        text-align: center;
                        line-height: 28px;
                    }

                    .tabResult td {
                        padding: 5px;
                        border: 1px solid #eaeaea;
                    }

                    .tabResult tr:hover {
                        background: #539eb5 !important;
                    }

                </style>

            </head>

            <body style="font-family:Verdana; font-size:14px">

                <a href="../index.html">Voltar à Home</a>
                <br/>
                <br/>

                <div style="margin-bottom:10px">
                    <div class="header grad_preto">
                        <table cellpadding=0 cellspacing=0 style="width:100%">
                            <tr>
                                <td><b>' + @Doc_Titulo + '</b></td>
                                <td align="right"><b><a href="../index.html" style="text-decoration:none; color:white">Voltar</a></b></td>
                            </tr>
                        </table>
                    </div>
                    <div style="padding:5px; margin-top:10px">' + @Doc_Descricao + '</div>
                </div>

                <br/>

                ' + @bloco_Versoes + '

                <br/>

                <div class="divTitulo verde">
                    <b>Código Fonte</b>
                </div>

                <pre id="preQuery" class="sh_sql"><xmp>' + @Ds_Procedure + '</xmp></pre>

            </body>

        </html>'


        DECLARE @Ds_Caminho_Arquivo VARCHAR(500) = @Ds_Caminho + @Nm_Procedure + '\'
        EXEC master.dbo.xp_create_subdir @Ds_Caminho_Arquivo

        SET @Nm_Arquivo = @Ds_Caminho_Arquivo + CAST(@Id_Auditoria AS VARCHAR(MAX)) + '.html'

        EXEC dbo.stpEscreve_Arquivo_FSO @Html, @Nm_Arquivo

        IF (@Id_Auditoria = @Id_Max)
        BEGIN

            SET @Nm_Arquivo = @Ds_Caminho_Arquivo + 'index.html'
            EXEC dbo.stpEscreve_Arquivo_FSO @Html, @Nm_Arquivo

            SET @Html_index = @Html_index + '
                <div style="padding:5px">
                    <li><a href="' + @Ds_Caminho_Arquivo + 'index.html" style="text-decoration:none; color:black">' + @Nm_Procedure + '</a></li>
                </div>
            '
        END

        DELETE #Procedures WHERE Id_Auditoria = @Id_Auditoria

    END


    SET @Html_index = @Html_index+'
            </ul>

        </body>
    </html>
    '

    SET @Nm_Arquivo = @Ds_Caminho + 'index.html'
    EXEC dbo.stpEscreve_Arquivo_FSO @Html_index, @Nm_Arquivo

END

Trigger used

trgDDLAuditQuery

CREATE TRIGGER [trgDDLAuditQuery]
ON DATABASE
FOR ALTER_PROCEDURE
AS
BEGIN

    SET NOCOUNT ON

    DECLARE @EventAtual XML = EVENTDATA()
    DECLARE @Nm_Procedure VARCHAR(MAX) = @EventAtual.value('(/EVENT_INSTANCE/ObjectName)[1]', 'nvarchar(max)')
    DECLARE @QueryAtual VARCHAR(MAX) = @EventAtual.value('(/EVENT_INSTANCE/TSQLCommand)[1]', 'nvarchar(max)')

    DECLARE @Nm_Login VARCHAR(MAX) = @EventAtual.value('(/EVENT_INSTANCE/LoginName/text())[1]','varchar(50)')

    DECLARE @altAtual XML = dbo.fncDocumentacao_BuscaTag(@QueryAtual,'alt',NULL)
    DECLARE @docAtual XML = dbo.fncDocumentacao_BuscaTag(@QueryAtual,'doc',NULL)

    DECLARE @Max_Id_Alteracao INT
    SELECT @Max_Id_Alteracao = MAX(Id_Auditoria) FROM dbo.Log_Procedures WHERE Nm_Procedure = @Nm_Procedure

    DECLARE @EventAnterior XML = (SELECT TOP(1) Ds_Query FROM dbo.Log_Procedures WHERE Id_Auditoria = @Max_Id_Alteracao ORDER BY Id_Auditoria DESC)
    DECLARE @QueryAnterior VARCHAR(MAX) = @EventAnterior.value('(/EVENT_INSTANCE/TSQLCommand)[1]', 'nvarchar(max)')
    DECLARE @altAnterior XML = dbo.fncDocumentacao_BuscaTag(@QueryAnterior,'alt',NULL)

    DECLARE @dsAtual VARCHAR(MAX) = @altAtual.value('(/alt)[1]', 'nvarchar(max)')
    DECLARE @dsAnterior VARCHAR(MAX) = @altAnterior.value('(/alt)[1]', 'nvarchar(max)')

    IF (ISNULL(@dsAtual,'') = ISNULL(@dsAnterior,'') OR ISNULL(@dsAtual, '') = '')
    BEGIN
        ROLLBACK
        RAISERROR('O motivo de alteração não foi informado. FAVOR INFORMAR O MOTIVO DA ALTERAÇÃO USANDO A TAG <alt> como comentário (/* <alt>Descrição da alteração</alt> */).', 16, 1)
        RETURN
    END


    INSERT INTO dbo.Log_Procedures (Dt_Evento, Nm_Procedure, Nm_Login, Ds_Procedure, Ds_Alt, Ds_Doc, Ds_Query)
    SELECT GETDATE(), @Nm_Procedure, @Nm_Login, @QueryAtual, @altAtual, @docAtual, @EventAtual


    EXEC dbo.stpDOC_Gera_Arquivos
        @Ds_Caminho = 'C:\Documentação\' -- varchar(500)



END
GO

ENABLE TRIGGER [trgDDLAuditQuery] ON DATABASE
GO

Remembering that as I use the OLE Automation feature in the Stored Procedure stpEscribe_Arquivo_FSO to write the files to disk, we will need enable this feature on the instance:

sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
sp_configure 'Ole Automation Procedures', 1;
GO
RECONFIGURE;
GO
sp_configure 'Agent XPs', 1;
GO
RECONFIGURE;
GO
sp_configure 'show advanced options', 0;
GO
RECONFIGURE;
GO

How to version codes

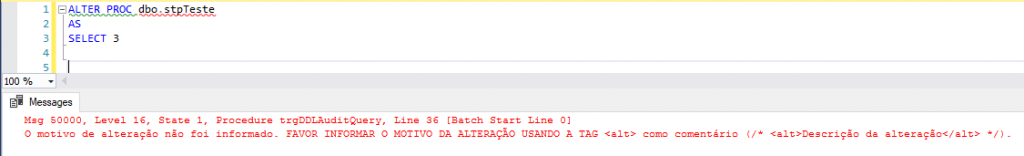

After creating all the necessary objects for this control, you will see that you will no longer be able to change an SP without informing the reason for the change:

Simple way to document changes:

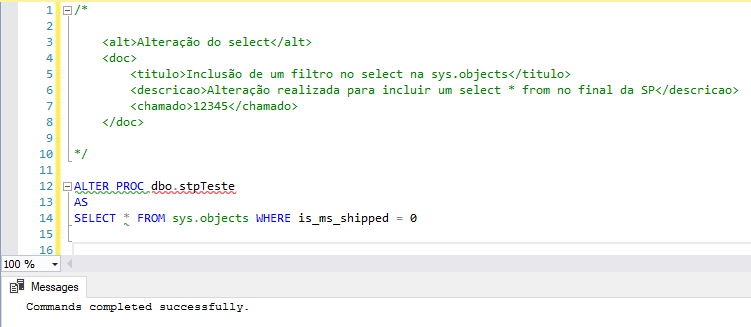

Complete way to document changes:

/*

    <alt>Inclusão do select</alt>
    <doc>
        <titulo>Inclusão de um select na sys.objects</titulo>
        <descricao>Alteração realizada para incluir um select * from no final da SP</descricao>
        <chamado>1234</chamado>
    </doc>

*/

ALTER PROC dbo.stpTeste
AS
SELECT * FROM sys.objects
