Hey guys!
In this article, I will share with you a solution that I have been looking for for a long time, which is how to send messages to Whatsapp contacts, groups and broadcast lists using WebRequests. I had already done something similar using other tools, but never Whatsapp, which does not have an official API and is completely closed in this regard.

Although there are even better communication tools than Whatsapp, like Telegram itself, 100 out of 100 people I know have a Whatsapp account and the majority don't have a Telegram account, so I think this article could end up becoming a public utility for anyone who wants to create any automation involving Whatsapp.

Check out my articles about other communication tools:

Whatsapp communication API

The main character of this article, the NETiZap API is what makes easy integration between the SQL Server database and the Whatsapp communicator possible, since it does not have an official API and is completely closed in this regard. I've already tried to carry out some integrations directly with Whatsapp and, after some tests, I was banned for 24 hours and notified that next time, my number would be banned from the platform forever. After that, I ended up leaving these tests aside... lol

That's why using an API is so practical and safe: The number that makes the calls is the API number and not your personal/corporate number.

To test this API, you can use the demo version, which is free, but to implement real routines, you must purchase a paid plan:

FlatModalityQuantity of ShipmentsValue
Free PlanFree for Demonstration, Testing or Periodic Purposes.CustomFree
Prepaid PlanMessage Package + Support100R$0.20 per message + R$50.00 monthly
Postpaid PlanMonthly Fee + SupportUnlimitedR$ 200.00
Postpaid Plan for ResellersMonthly Fee + SupportUnlimitedR$ 130.00 (Minimum of 5 lines)

Rules:

  • Use for spam purposes is prohibited
  • Rules supervised and applied by WhatsApp

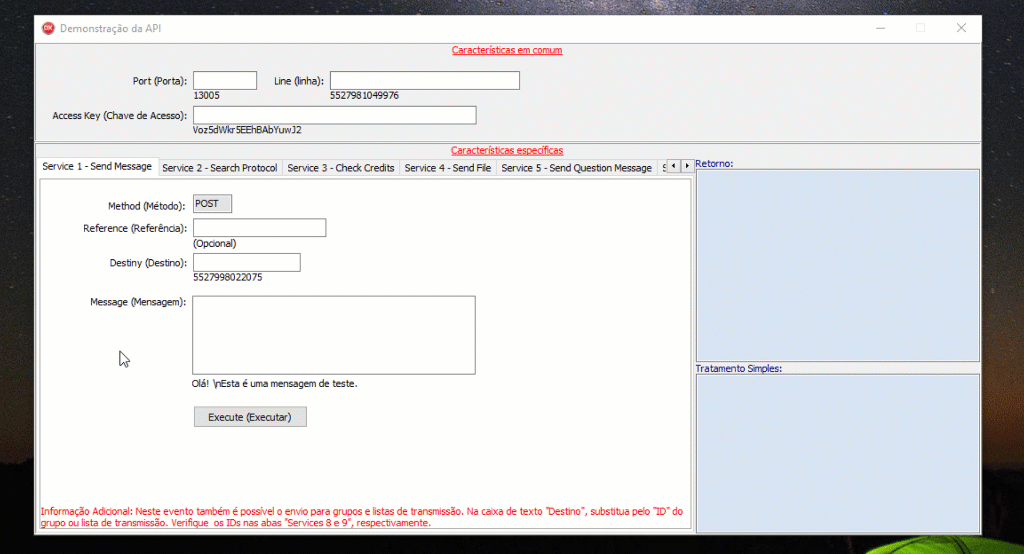

Within the API package, you can use the ConsumersAPI.exe application, which allows you to test all API methods with the default parameters:

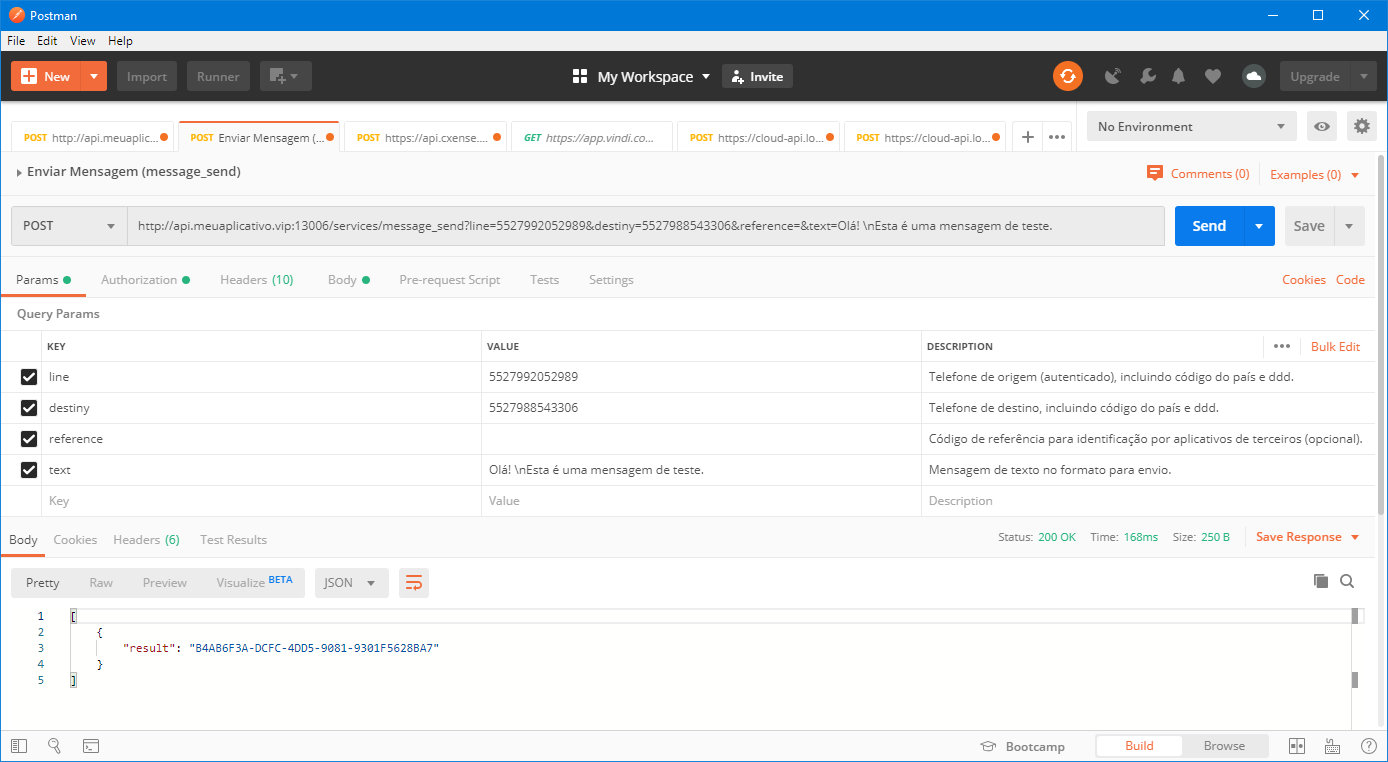

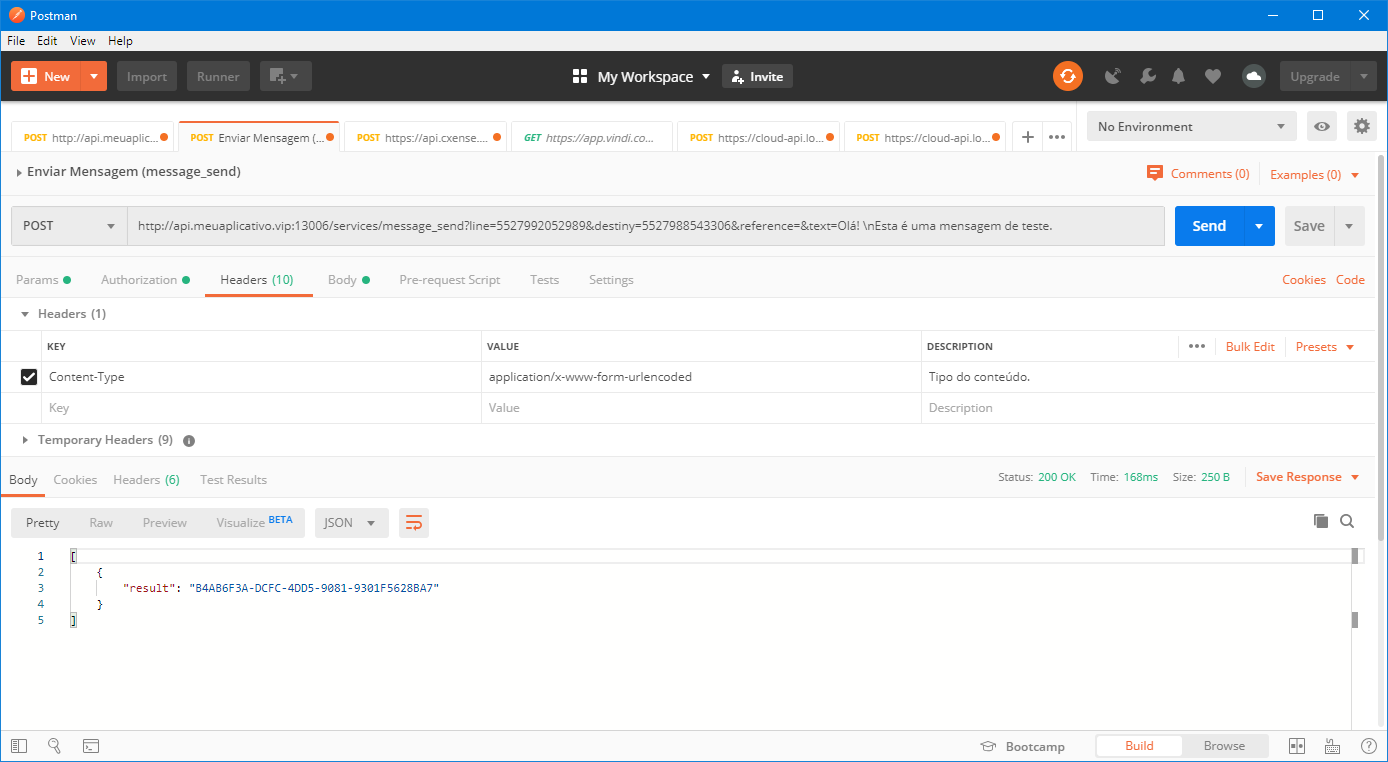

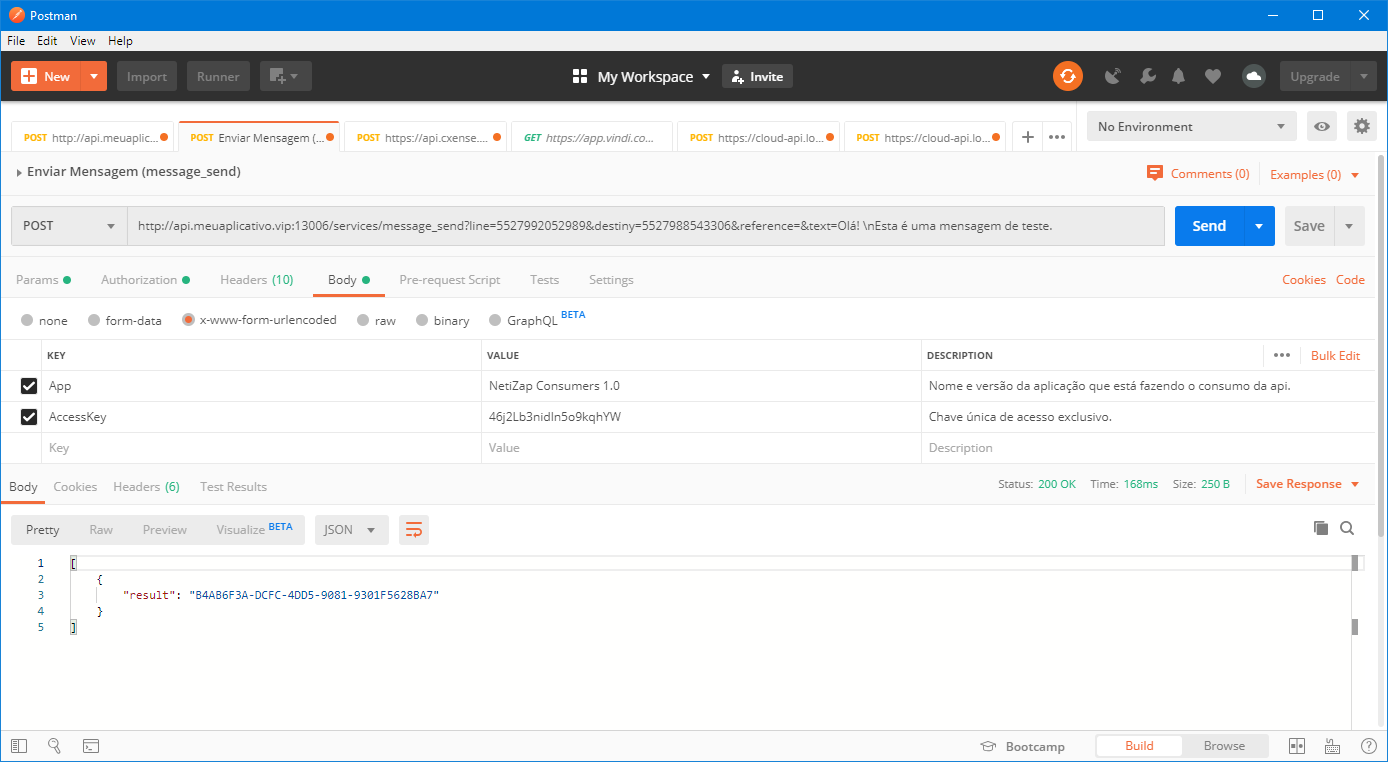

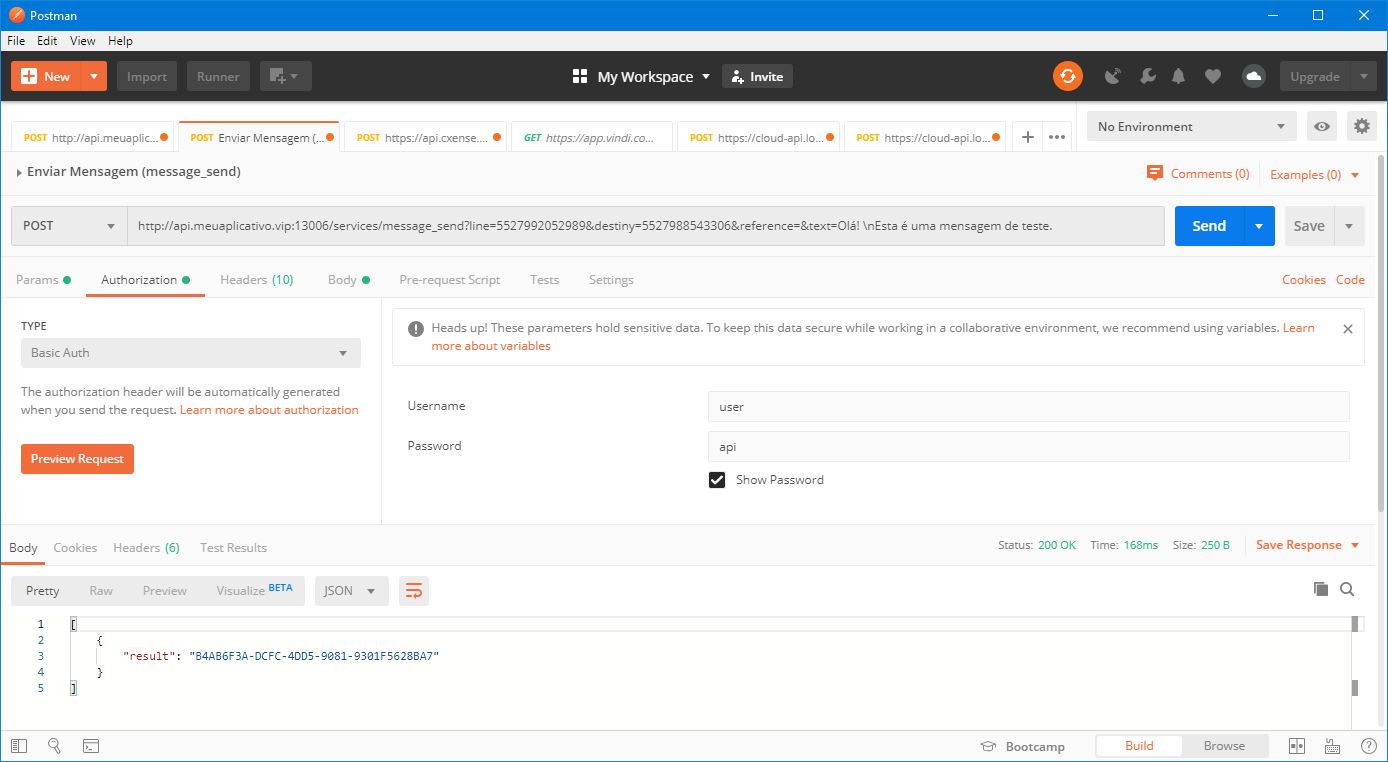

You can also test using Postman:

SQL Server - How to send messages to WhatsApp contacts, groups and broadcast lists 1
SQL Server - How to send messages to WhatsApp 2 contacts, groups and broadcast lists
SQL Server - How to send messages to WhatsApp 3 contacts, groups and broadcast lists
SQL Server - How to send messages to WhatsApp 4 contacts, groups and broadcast lists

Documentation for this API is available on this link here. To download the API developer pack, click here on this link.

If you are interested in hiring this API for your company, contact Thiago, developer of this API, on the phone +55 27 99802-2075. The number used to send messages is not fixed and can be changed/chosen by the contracting company.

Sending messages to WhatsApp with OLE Automation

Click here to view the content
One of the ways to carry out this communication between SQL Server and the API is using the OLE Automation, which instantiates Windows objects into SQL Server. This method is already quite old in SQL Server, known for some memory leaks and should be used as a last resort, as SQLCLR is safer and more flexible than this method (and accentuation works), but a little more complicated to implement as well.

Sending private messages via Whatsapp

To send a message to a specific Whatsapp contact, use the code below:

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Destinatario VARCHAR(30) = 'telefone_destino', -- FORMATO: ddnumero Ex: 11988543306
    @Mensagem VARCHAR(MAX) = 'Teste da API',
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- NÃO ALTERAR DAQUI PARA BAIXO
DECLARE
    @obj INT,
    @Url VARCHAR(255),
    @resposta VARCHAR(8000),
    @Parametros VARCHAR(4000),
    @Autorizacao VARCHAR(100),
    @source VARBINARY(MAX)


--------------------------------------------------------------------------------
-- Habilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

DECLARE @Fl_Ole_Automation_Ativado BIT = (SELECT (CASE WHEN CAST([value] AS VARCHAR(MAX)) = '1' THEN 1 ELSE 0 END) FROM sys.configurations WHERE [name] = 'Ole Automation Procedures')

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 1;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 1;
    RECONFIGURE WITH OVERRIDE;

END



--------------------------------------------------------------------------------
-- Realizando a requisição
--------------------------------------------------------------------------------

SET @Url = 'http://api.meuaplicativo.vip:13005/services/message_send?line=5527981049976&destiny=55' + @Destinatario + '&reference&text=' + @Mensagem
SET @Parametros = 'App=NetiZap Consumers 1.0&AccessKey=' + @Chave

SET @source = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha)
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')

EXEC sys.sp_OACreate 'MSXML2.ServerXMLHTTP', @obj OUT
EXEC sys.sp_OAMethod @obj, 'open', NULL, 'POST', @Url, 'FALSE'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Content-Type', 'application/x-www-form-urlencoded'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Authorization', @Autorizacao
EXEC sys.sp_OAMethod @obj, 'send', NULL, @Parametros

EXEC sys.sp_OAGetProperty @obj, 'responseText', @resposta OUT
EXEC sys.sp_OADestroy @obj

SELECT @resposta

--------------------------------------------------------------------------------
-- Desabilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 0;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 0;
    RECONFIGURE WITH OVERRIDE;

END

Result:

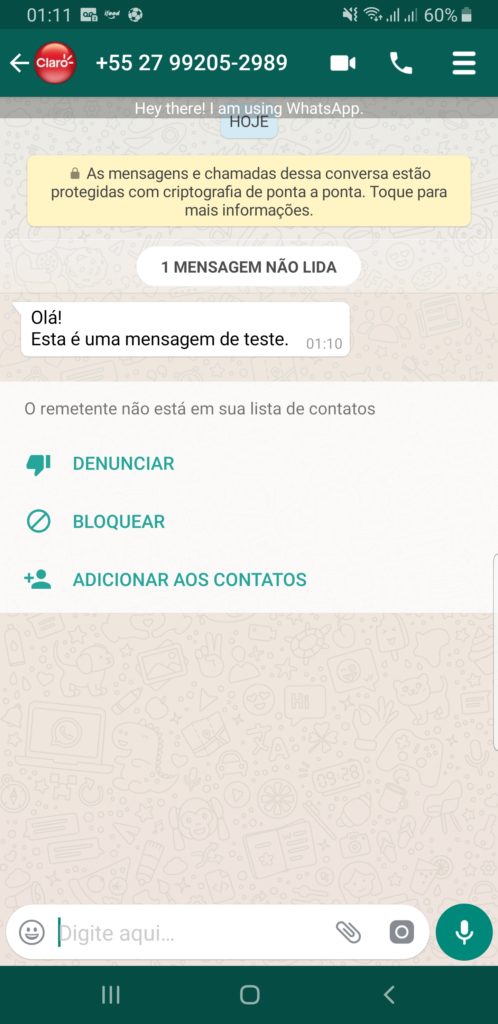

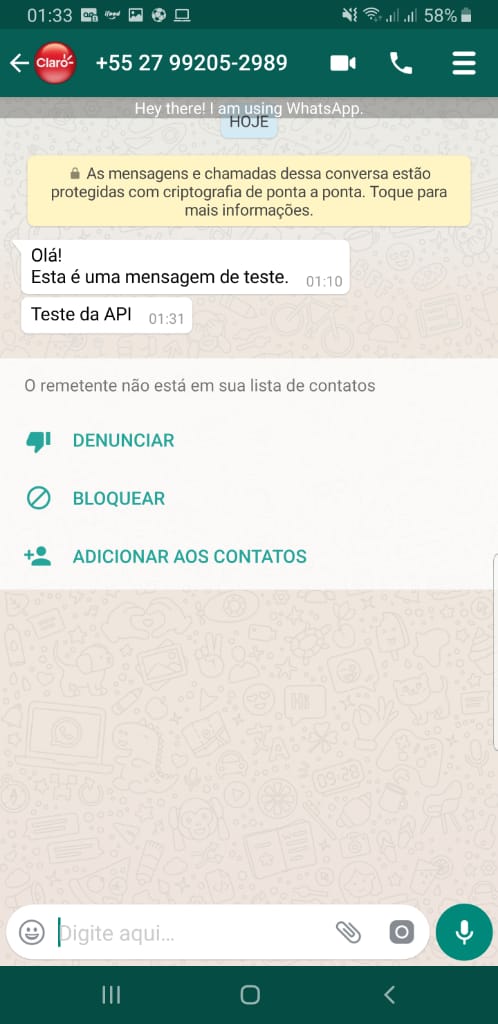

How to get to your cell phone:

How to retrieve the list of available groups

To list the groups available in your account, you can use the script below. To send a message to the group, simply use the same private message sending script and replace the recipient's phone number with the group ID returned below.

The JSON treatment was done with the OPENJSON function, available from SQL Server 2016. If your version is older than that, you can replace it with a simple SELECT in the variable and manually identify the id of the desired group. If you want to know more about handling JSON strings, take a look at my article SQL Server 2016 – Using native JSON support (JSON_VALUE, JSON_QUERY, OPENJSON, FOR JSON, ISJSON, JSON_MODIFY).

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- NÃO ALTERAR DAQUI PARA BAIXO
DECLARE
    @obj INT,
    @Url VARCHAR(255),
    @resposta VARCHAR(8000),
    @Parametros VARCHAR(4000),
    @Autorizacao VARCHAR(100),
    @source VARBINARY(MAX)


--------------------------------------------------------------------------------
-- Habilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

DECLARE @Fl_Ole_Automation_Ativado BIT = (SELECT (CASE WHEN CAST([value] AS VARCHAR(MAX)) = '1' THEN 1 ELSE 0 END) FROM sys.configurations WHERE [name] = 'Ole Automation Procedures')

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 1;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 1;
    RECONFIGURE WITH OVERRIDE;

END



--------------------------------------------------------------------------------
-- Realizando a requisição
--------------------------------------------------------------------------------

SET @Url = 'http://api.meuaplicativo.vip:13005/services/group_search?line=5527981049976&AccessKey=' + @Chave

SET @source = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha)
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')

EXEC sys.sp_OACreate 'MSXML2.ServerXMLHTTP', @obj OUT
EXEC sys.sp_OAMethod @obj, 'open', NULL, 'GET', @Url, 'FALSE'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Content-Type', 'application/x-www-form-urlencoded'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Authorization', @Autorizacao
EXEC sys.sp_OAMethod @obj, 'send', NULL, @Parametros

EXEC sys.sp_OAGetProperty @obj, 'responseText', @resposta OUT
EXEC sys.sp_OADestroy @obj


SELECT
    conteudo.id,
    conteudo.descricao
FROM
    OPENJSON(@resposta, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo


--------------------------------------------------------------------------------
-- Desabilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 0;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 0;
    RECONFIGURE WITH OVERRIDE;

END

Result:

How to send messages to a Whatsapp group

Now that I've demonstrated how to send a private message and how to list groups, let's combine the two and send messages to a group!

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Destino VARCHAR(50),
    @Mensagem VARCHAR(8000) = 'Ola! \nEsta e uma mensagem de *teste* para o ~grupo~.',
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- NÃO ALTERAR DAQUI PARA BAIXO
DECLARE
    @obj INT,
    @Url_Mensagem NVARCHAR(4000),
    @Url_Grupo VARCHAR(4000) = 'http://api.meuaplicativo.vip:13005/services/group_search?line=5527981049976&AccessKey=' + @Chave,
    @resposta VARCHAR(8000),
    @Parametros VARCHAR(4000) = 'App=NetiZap Consumers 1.0&AccessKey=' + @Chave,
    @Autorizacao VARCHAR(100),
    @source VARBINARY(MAX)


--------------------------------------------------------------------------------
-- Habilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

DECLARE @Fl_Ole_Automation_Ativado BIT = (SELECT (CASE WHEN CAST([value] AS VARCHAR(MAX)) = '1' THEN 1 ELSE 0 END) FROM sys.configurations WHERE [name] = 'Ole Automation Procedures')

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 1;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 1;
    RECONFIGURE WITH OVERRIDE;

END



--------------------------------------------------------------------------------
-- Realizando a requisição
--------------------------------------------------------------------------------

SET @source = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha)
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')

EXEC sys.sp_OACreate 'MSXML2.ServerXMLHTTP', @obj OUT
EXEC sys.sp_OAMethod @obj, 'open', NULL, 'GET', @Url_Grupo, 'FALSE'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Content-Type', 'application/x-www-form-urlencoded'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Authorization', @Autorizacao
EXEC sys.sp_OAMethod @obj, 'send', NULL, NULL

EXEC sys.sp_OAGetProperty @obj, 'responseText', @resposta OUT
EXEC sys.sp_OADestroy @obj


-- Gravo a lista dos grupos numa tabela temporária
IF (OBJECT_ID('tempdb..#Grupos') IS NOT NULL) DROP TABLE #Grupos
SELECT
    conteudo.id,
    conteudo.descricao
INTO
    #Grupos
FROM
    OPENJSON(@resposta, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo


SET @obj = NULL
SET @resposta = NULL
SET @Destino = (SELECT TOP(1) id FROM #Grupos WHERE descricao = 'Teste API')
SET @Url_Mensagem = 'http://api.meuaplicativo.vip:13005/services/message_send?line=5527981049976&destiny=' + @Destino + '&text=' + @Mensagem


EXEC sys.sp_OACreate 'MSXML2.ServerXMLHTTP', @obj OUT
EXEC sys.sp_OAMethod @obj, 'open', NULL, 'POST', @Url_Mensagem, 'FALSE'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Content-Type', 'application/x-www-form-urlencoded; charset=utf-8'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Charset', 'UTF-8'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Authorization', @Autorizacao
EXEC sys.sp_OAMethod @obj, 'send', NULL, @Parametros

EXEC sys.sp_OAGetProperty @obj, 'responseText', @resposta OUT
EXEC sys.sp_OADestroy @obj


SELECT @resposta


--------------------------------------------------------------------------------
-- Desabilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 0;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 0;
    RECONFIGURE WITH OVERRIDE;

END

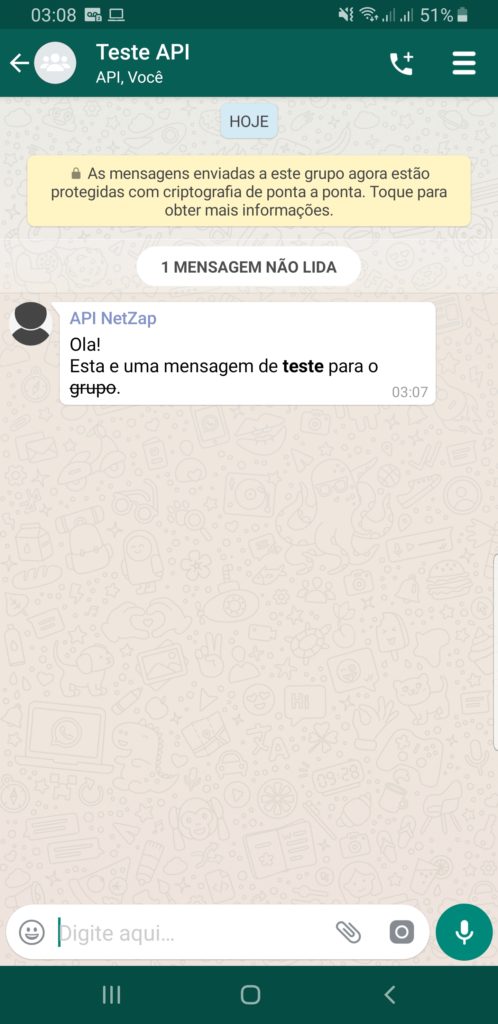

How to get to your cell phone:

How to retrieve the list of available streams for your account

Almost identical to the account group listing, the script below allows you to list the broadcast lists available for sending via the API:

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- NÃO ALTERAR DAQUI PARA BAIXO
DECLARE
    @obj INT,
    @Url VARCHAR(255),
    @resposta VARCHAR(8000),
    @Parametros VARCHAR(4000),
    @Autorizacao VARCHAR(100),
    @source VARBINARY(MAX)


--------------------------------------------------------------------------------
-- Habilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

DECLARE @Fl_Ole_Automation_Ativado BIT = (SELECT (CASE WHEN CAST([value] AS VARCHAR(MAX)) = '1' THEN 1 ELSE 0 END) FROM sys.configurations WHERE [name] = 'Ole Automation Procedures')

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 1;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 1;
    RECONFIGURE WITH OVERRIDE;

END



--------------------------------------------------------------------------------
-- Realizando a requisição
--------------------------------------------------------------------------------

SET @Url = 'http://api.meuaplicativo.vip:13005/services/broadcast_search?line=5527981049976&AccessKey=' + @Chave

SET @source = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha)
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')

EXEC sys.sp_OACreate 'MSXML2.ServerXMLHTTP', @obj OUT
EXEC sys.sp_OAMethod @obj, 'open', NULL, 'GET', @Url, 'FALSE'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Content-Type', 'application/x-www-form-urlencoded'
EXEC sys.sp_OAMethod @obj, 'setRequestHeader', NULL, 'Authorization', @Autorizacao
EXEC sys.sp_OAMethod @obj, 'send', NULL, @Parametros

EXEC sys.sp_OAGetProperty @obj, 'responseText', @resposta OUT
EXEC sys.sp_OADestroy @obj


SELECT
    conteudo.id,
    conteudo.descricao
FROM
    OPENJSON(@resposta, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo


--------------------------------------------------------------------------------
-- Desabilitando o OLE Automation (Se não estiver ativado)
--------------------------------------------------------------------------------

IF (@Fl_Ole_Automation_Ativado = 0)
BEGIN

    EXECUTE sp_configure 'show advanced options', 0;
    RECONFIGURE WITH OVERRIDE;

    EXEC sp_configure 'Ole Automation Procedures', 0;
    RECONFIGURE WITH OVERRIDE;

END

Result:

How to create SQLCLR libraries (Only if using SQLCLR)

Click here to view the content
In this article, I will demonstrate two techniques for making HTTP requests through SQL Server: SQLCLR and OLE Automation. If you want to use SQLCLR, this topic is used to install the necessary objects to be able to follow the examples in this article. If you choose to use OLE Automation, you can skip this topic.

The simplest and most robust way to make HTTP requests through SQL Server is, without a doubt, using the SQLCLR (Click here if you don't even know what SQLCLR is).

How to create stpWs_Requisicao in your environment (SQL Server 2012 to 2016):

If you are using the 2012, 2014 or 2016 versions of SQL Server, you can use the script below to create the assembly (DLL) in the desired database and the stored procedure “stpWs_Requisicao”, which is used to make the HTTP API request.

USE [Base_Teste]
GO

-- Apago os objetos desse post, caso já tenham sido criados
IF (OBJECT_ID('dbo.stpWs_Requisicao') IS NOT NULL) DROP PROCEDURE dbo.stpWs_Requisicao;
IF (EXISTS(SELECT NULL FROM sys.assemblies WHERE [name] = @clrName)) DROP ASSEMBLY [SQLCLR_Requisicao_Web]

-- Crio o assembly no banco
CREATE ASSEMBLY [SQLCLR_Requisicao_Web]
    AUTHORIZATION [dbo]
    FROM 0x4D5A90000300000004000000FFFF0000B800000000000000400000000000000000000000000000000000000000000000000000000000000000000000800000000E1FBA0E00B409CD21B8014CCD21546869732070726F6772616D2063616E6E6F742062652072756E20696E20444F53206D6F64652E0D0D0A2400000000000000504500004C010300EB85E45D0000000000000000E00022200B013000001200000006000000000000AA300000002000000040000000000010002000000002000004000000000000000600000000000000008000000002000000000000030060850000100000100000000010000010000000000000100000000000000000000000583000004F00000000400000D802000000000000000000000000000000000000006000000C000000202F00001C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000200000080000000000000000000000082000004800000000000000000000002E74657874000000B0100000002000000012000000020000000000000000000000000000200000602E72737263000000D8020000004000000004000000140000000000000000000000000000400000402E72656C6F6300000C00000000600000000200000018000000000000000000000000000040000042000000000000000000000000000000008C30000000000000480000000200050034240000EC0A000001000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001B3005003003000001000011000F02280600000A2D090F02280700000A2B0572010000700A0F01280600000A2D090F01280700000A2B0572030000700B0F00280700000A0C7E0800000A0D0F03280600000A2D090F03280700000A2B05720B00007013040F04280600000A2D090F04280700000A2B05720100007013050F05280600000A2D090F05280700000A2B05720100007013060F07280600000A2D090F07280700000A2B05720100007013070F06280900000A2D090F06280A00000A2B011613080F08280B00000A2D090F08280C00000A2B021F1E13091104280D00000A130A110A2C07720B0000701304000008280E00000A740A000001130B110B076F0F00000A00110B110920E80300005A6F1000000A000872170000706F1100000A16FE0416FE01130C110C2C390017281200000A0020F00F0000281300000A007E02000004252D17267E01000004FE0605000006731400000A258002000004281500000A00001106280D00000A16FE01130D110D2C0C00110B11066F1600000A00001105280D00000A16FE01130E110E2C0C00110B11056F1700000A00001107280D00000A16FE01130F110F2C77001107178D1800000125161F7C9D6F1800000A131011108E6913111613122B4A00111011129A178D1400000125167229000070A2166F1900000A13131113169A6F1A00000A13141113179A6F1A00000A1315110B6F1B00000A111411156F1C00000A000011121758131211121111FE04131611162DAA001108131711172C02000007722F000070281D00000A2D0D077239000070281D00000A2C0B066F1E00000A16FE022B0116131811182C5100061319281F00000A11196F2000000A131A110B111A8E696A6F2100000A00110B6F2200000A131B00111B111A16111A8E696F2300000A00111B6F2400000A0000DE0D111B2C08111B6F2500000A00DC00110B6F2600000A740C000001131C00111C6F2700000A131D00111D14FE03131E111E2C2B00111D1104282800000A732900000A131F00111F6F2A00000A0D00DE0D111F2C08111F6F2500000A00DC0000DE0D111D2C08111D6F2500000A00DC00DE0D111C2C08111C6F2500000A00DC00DE1013200011206F2B00000A732C00000A7A0E0909282D00000A81070000012A417C000002000000770200001B000000920200000D0000000000000002000000D50200000C000000E10200000D0000000000000002000000B80200003A000000F20200000D0000000000000002000000AE02000054000000020300000D0000000000000000000000E30000002F02000012030000100000000E0000012202282E00000A002A2E730400000680010000042A00000013300100070000000200001100170A2B00062A0042534A4201000100000000000C00000076342E302E33303331390000000005006C00000070030000237E0000DC0300007805000023537472696E67730000000054090000440000002355530098090000100000002347554944000000A80900004401000023426C6F620000000000000002000001571502000902000000FA01330016000001000000200000000300000002000000050000000E0000002E0000000500000002000000010000000300000001000000000096020100000000000600B101EE030600D101EE0306008701DB030F000E0400000600C204FA020A009B01B3030A0023021D040A0006031D040A0023001D040E00FB04C9040600F30256000E002501C90406008703560006004E03FA0206006C01EE030E004A02420506004F0143040E00110343040E00B204420506002602FA020E00FF04C9040E009F03C9040E00F100C90406008203FA0206007A04FA020E002F03C9040E001B03A50006001A022A050600E500FA020E002901C90406009403560006004303FA02000000004D0000000000010001000100100032040000150001000100032110009D00000015000100030036003500DC0016000100E00050200000000096006703E40001000824000000008618CE0306000B001124000000009118D403FD000B000824000000008618CE0306000B0020240000000083000A0001010B0000000100D002000002007803000003008D0400000400580300000500E604000006000601000007006405000008009B04000009000A0502000A006000000001003900000002003E000000030043000000040048000900CE0301001100CE0306001900CE030A003100CE0306007900CE0306003900B0023D003900EF014100A1005E0545004100B0023D004100EF013D004900B0023D004900EF014800A10056054C00A9005F015100A900CE005700A9001E050100A1000F025C00B100F9016100B100BB0266008100CE036C00B1006E027200A900150157005100F0045700A100E0047800A100E0047F00A10001034100A900A6048800D900A1008D00A10036059300A1002D024800E1002C009900E10071049E00A9003802A400A900E902A90059006601AE00590041010600E90047010600A9003501B600F100D702A900E1001702BB006900CE03C100F900C40041007100D90041000101CE0357003900D404C9002900CE030600200023003D012E000B000C012E00130015012E001B00340163002B003D011000CF000480000000000000000000000000000000007E000000040000000000000000000000D300940000000000040000000000000000000000D300720000000000040000000000000000000000D300FA0200000000030002000000003C3E395F5F305F30003C73747057735F5265717569736963616F3E625F5F305F300053716C496E743332006765745F55544638003C3E39003C70303E003C70313E003C70323E003C70333E003C4D6F64756C653E0053797374656D2E494F0044735F5265746F726E6F5F4F55545055540053797374656D2E446174610053514C434C525F5265717569736963616F5F576562006D73636F726C6962003C3E63004164640053797374656D2E436F6C6C656374696F6E732E5370656369616C697A65640052656164546F456E64007365745F4D6574686F64006765745F4D6573736167650049446973706F7361626C6500536563757269747950726F746F636F6C547970650044735F436F6E74656E7454797065007365745F436F6E74656E74547970650048747470576562526573706F6E736500476574526573706F6E736500436C6F736500446973706F7365005835303943657274696669636174650043726561746500577269746500436F6D70696C657247656E6572617465644174747269627574650044656275676761626C654174747269627574650053716C50726F63656475726541747472696275746500436F6D70696C6174696F6E52656C61786174696F6E734174747269627574650052756E74696D65436F6D7061746962696C697479417474726962757465006765745F56616C7565007365745F457870656374313030436F6E74696E756500496E6465784F6600476574456E636F64696E670053716C537472696E67006765745F4C656E677468007365745F436F6E74656E744C656E6774680052656D6F7465436572746966696361746556616C69646174696F6E43616C6C6261636B007365745F536572766572436572746966696361746556616C69646174696F6E43616C6C6261636B0053514C434C525F5265717569736963616F5F5765622E646C6C006765745F49734E756C6C007365745F536563757269747950726F746F636F6C0044735F55726C00476574526573706F6E736553747265616D004765745265717565737453747265616D0053797374656D005472696D0053716C426F6F6C65616E0058353039436861696E004E616D6556616C7565436F6C6C656374696F6E00576562486561646572436F6C6C656374696F6E004170706C69636174696F6E457863657074696F6E0044735F436F64696669636163616F0073747057735F5265717569736963616F0044735F4D65746F646F00436861720053747265616D52656164657200546578745265616465720053657276696365506F696E744D616E61676572004D6963726F736F66742E53716C5365727665722E536572766572002E63746F72002E6363746F720053797374656D2E446961676E6F73746963730053797374656D2E52756E74696D652E436F6D70696C6572536572766963657300446562756767696E674D6F6465730053797374656D2E446174612E53716C54797065730053746F72656450726F636564757265730053797374656D2E53656375726974792E43727970746F6772617068792E5835303943657274696669636174657300476574427974657300537472696E6753706C69744F7074696F6E730044735F506172616D6574726F730044735F48656164657273006765745F486561646572730053736C506F6C6963794572726F7273004F626A6563740053797374656D2E4E6574006F705F496D706C696369740053706C69740044735F416363657074007365745F4163636570740048747470576562526571756573740051745F536567756E646F735F54696D656F7574007365745F54696D656F75740053797374656D2E54657874006F705F457175616C6974790053797374656D2E4E65742E53656375726974790049734E756C6C4F72456D70747900466C5F417574656E746963615F50726F7879000000010007470045005400000B5500540046002D0038000111680074007400700073003A002F002F0000053A003A00000950004F005300540000075000550054000000000091D3434B91A6944B9944F25BAF4B39B0000420010108032000010520010111112C07210E0E0E0E0E0E0E0E0208021229020202021D0E08081D0E0E0E0202020E1D05122D1231122D0212351239032000020320000E02060E03200008040001020E05000112550E042001010E042001080E040001010205000101115D052002011C180500010112410620011D0E1D030820021D0E1D0E11650420001269052002010E0E050002020E0E04000012710520011D050E042001010A042000122D072003011D050808042000127905000112710E07200201122D1271050001111D0E0307010208B77A5C561934E0890306120C0306124118000A01111D111D111D111D111D111D1121111D112510111D030000010A2004021C12451249114D0801000800000000001E01000100540216577261704E6F6E457863657074696F6E5468726F7773010801000701000000000401000000000000000000EB85E45D00000000020000001C0100003C2F00003C110000525344538863FD7F0DBEED47BBE2FD478149B89501000000433A5C55736572735C6469726365755C736F757263655C7265706F735C53514C434C525F5265717569736963616F5F5765625C53514C434C525F5265717569736963616F5F5765625C6F626A5C44656275675C53514C434C525F5265717569736963616F5F5765622E70646200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000008030000000000000000000009A3000000020000000000000000000000000000000000000000000008C300000000000000000000000005F436F72446C6C4D61696E006D73636F7265652E646C6C0000000000FF2500200010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001001000000018000080000000000000000000000000000001000100000030000080000000000000000000000000000001000000000048000000584000007C02000000000000000000007C0234000000560053005F00560045005200530049004F004E005F0049004E0046004F0000000000BD04EFFE00000100000000000000000000000000000000003F000000000000000400000002000000000000000000000000000000440000000100560061007200460069006C00650049006E0066006F00000000002400040000005400720061006E0073006C006100740069006F006E00000000000000B004DC010000010053007400720069006E006700460069006C00650049006E0066006F000000B801000001003000300030003000300034006200300000002C0002000100460069006C0065004400650073006300720069007000740069006F006E000000000020000000300008000100460069006C006500560065007200730069006F006E000000000030002E0030002E0030002E003000000054001A00010049006E007400650072006E0061006C004E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C0000002800020001004C006500670061006C0043006F0070007900720069006700680074000000200000005C001A0001004F0072006900670069006E0061006C00460069006C0065006E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C000000340008000100500072006F006400750063007400560065007200730069006F006E00000030002E0030002E0030002E003000000038000800010041007300730065006D0062006C0079002000560065007200730069006F006E00000030002E0030002E0030002E0030000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003000000C000000AC3000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
    WITH PERMISSION_SET = EXTERNAL_ACCESS;


-- Crio a Stored Procedure "stpWs_Requisicao"
CREATE PROCEDURE [dbo].[stpWs_Requisicao] @Ds_Url NVARCHAR (MAX), @Ds_Metodo NVARCHAR (MAX), @Ds_Parametros NVARCHAR (MAX), @Ds_Codificacao NVARCHAR (MAX), @Ds_Accept NVARCHAR (MAX), @Ds_ContentType NVARCHAR (MAX), @Fl_Autentica_Proxy BIT, @Ds_Headers NVARCHAR (MAX), @Qt_Segundos_Timeout INT, @Ds_Retorno_OUTPUT NVARCHAR (MAX) OUTPUT
AS EXTERNAL NAME [SQLCLR_Requisicao_Web].[StoredProcedures].[stpWs_Requisicao]

How to create stpWs_Requisicao in your environment (SQL Server 2017+):

If you are using a version greater than or equal to 2017 of SQL Server, you can use the script below to create the assembly (DLL) in the desired database and the stored procedure “stpWs_Requisicao”, which is used to make the API HTTP request. This script is different from the previous one, because as of version 2017, SQL Server now requires the signing of assemblies even in Safe mode, due to changes in the security of the .NET Framework.

USE [Base_Teste]
GO

-- Habilito o modo TRUSTWORTHY para conseguir criar o assembly no modo EXTERNAL_ACCESS
ALTER DATABASE Base_Teste SET TRUSTWORTHY ON
GO

-- Gero a hash para marcar o assembly como confiável
DECLARE
    @clrName nvarchar(4000) = 'SQLCLR_Requisicao_Web',
    @asmBin varbinary(max) = 0x4D5A90000300000004000000FFFF0000B800000000000000400000000000000000000000000000000000000000000000000000000000000000000000800000000E1FBA0E00B409CD21B8014CCD21546869732070726F6772616D2063616E6E6F742062652072756E20696E20444F53206D6F64652E0D0D0A2400000000000000504500004C010300EB85E45D0000000000000000E00022200B013000001200000006000000000000AA300000002000000040000000000010002000000002000004000000000000000600000000000000008000000002000000000000030060850000100000100000000010000010000000000000100000000000000000000000583000004F00000000400000D802000000000000000000000000000000000000006000000C000000202F00001C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000200000080000000000000000000000082000004800000000000000000000002E74657874000000B0100000002000000012000000020000000000000000000000000000200000602E72737263000000D8020000004000000004000000140000000000000000000000000000400000402E72656C6F6300000C00000000600000000200000018000000000000000000000000000040000042000000000000000000000000000000008C30000000000000480000000200050034240000EC0A000001000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001B3005003003000001000011000F02280600000A2D090F02280700000A2B0572010000700A0F01280600000A2D090F01280700000A2B0572030000700B0F00280700000A0C7E0800000A0D0F03280600000A2D090F03280700000A2B05720B00007013040F04280600000A2D090F04280700000A2B05720100007013050F05280600000A2D090F05280700000A2B05720100007013060F07280600000A2D090F07280700000A2B05720100007013070F06280900000A2D090F06280A00000A2B011613080F08280B00000A2D090F08280C00000A2B021F1E13091104280D00000A130A110A2C07720B0000701304000008280E00000A740A000001130B110B076F0F00000A00110B110920E80300005A6F1000000A000872170000706F1100000A16FE0416FE01130C110C2C390017281200000A0020F00F0000281300000A007E02000004252D17267E01000004FE0605000006731400000A258002000004281500000A00001106280D00000A16FE01130D110D2C0C00110B11066F1600000A00001105280D00000A16FE01130E110E2C0C00110B11056F1700000A00001107280D00000A16FE01130F110F2C77001107178D1800000125161F7C9D6F1800000A131011108E6913111613122B4A00111011129A178D1400000125167229000070A2166F1900000A13131113169A6F1A00000A13141113179A6F1A00000A1315110B6F1B00000A111411156F1C00000A000011121758131211121111FE04131611162DAA001108131711172C02000007722F000070281D00000A2D0D077239000070281D00000A2C0B066F1E00000A16FE022B0116131811182C5100061319281F00000A11196F2000000A131A110B111A8E696A6F2100000A00110B6F2200000A131B00111B111A16111A8E696F2300000A00111B6F2400000A0000DE0D111B2C08111B6F2500000A00DC00110B6F2600000A740C000001131C00111C6F2700000A131D00111D14FE03131E111E2C2B00111D1104282800000A732900000A131F00111F6F2A00000A0D00DE0D111F2C08111F6F2500000A00DC0000DE0D111D2C08111D6F2500000A00DC00DE0D111C2C08111C6F2500000A00DC00DE1013200011206F2B00000A732C00000A7A0E0909282D00000A81070000012A417C000002000000770200001B000000920200000D0000000000000002000000D50200000C000000E10200000D0000000000000002000000B80200003A000000F20200000D0000000000000002000000AE02000054000000020300000D0000000000000000000000E30000002F02000012030000100000000E0000012202282E00000A002A2E730400000680010000042A00000013300100070000000200001100170A2B00062A0042534A4201000100000000000C00000076342E302E33303331390000000005006C00000070030000237E0000DC0300007805000023537472696E67730000000054090000440000002355530098090000100000002347554944000000A80900004401000023426C6F620000000000000002000001571502000902000000FA01330016000001000000200000000300000002000000050000000E0000002E0000000500000002000000010000000300000001000000000096020100000000000600B101EE030600D101EE0306008701DB030F000E0400000600C204FA020A009B01B3030A0023021D040A0006031D040A0023001D040E00FB04C9040600F30256000E002501C90406008703560006004E03FA0206006C01EE030E004A02420506004F0143040E00110343040E00B204420506002602FA020E00FF04C9040E009F03C9040E00F100C90406008203FA0206007A04FA020E002F03C9040E001B03A50006001A022A050600E500FA020E002901C90406009403560006004303FA02000000004D0000000000010001000100100032040000150001000100032110009D00000015000100030036003500DC0016000100E00050200000000096006703E40001000824000000008618CE0306000B001124000000009118D403FD000B000824000000008618CE0306000B0020240000000083000A0001010B0000000100D002000002007803000003008D0400000400580300000500E604000006000601000007006405000008009B04000009000A0502000A006000000001003900000002003E000000030043000000040048000900CE0301001100CE0306001900CE030A003100CE0306007900CE0306003900B0023D003900EF014100A1005E0545004100B0023D004100EF013D004900B0023D004900EF014800A10056054C00A9005F015100A900CE005700A9001E050100A1000F025C00B100F9016100B100BB0266008100CE036C00B1006E027200A900150157005100F0045700A100E0047800A100E0047F00A10001034100A900A6048800D900A1008D00A10036059300A1002D024800E1002C009900E10071049E00A9003802A400A900E902A90059006601AE00590041010600E90047010600A9003501B600F100D702A900E1001702BB006900CE03C100F900C40041007100D90041000101CE0357003900D404C9002900CE030600200023003D012E000B000C012E00130015012E001B00340163002B003D011000CF000480000000000000000000000000000000007E000000040000000000000000000000D300940000000000040000000000000000000000D300720000000000040000000000000000000000D300FA0200000000030002000000003C3E395F5F305F30003C73747057735F5265717569736963616F3E625F5F305F300053716C496E743332006765745F55544638003C3E39003C70303E003C70313E003C70323E003C70333E003C4D6F64756C653E0053797374656D2E494F0044735F5265746F726E6F5F4F55545055540053797374656D2E446174610053514C434C525F5265717569736963616F5F576562006D73636F726C6962003C3E63004164640053797374656D2E436F6C6C656374696F6E732E5370656369616C697A65640052656164546F456E64007365745F4D6574686F64006765745F4D6573736167650049446973706F7361626C6500536563757269747950726F746F636F6C547970650044735F436F6E74656E7454797065007365745F436F6E74656E74547970650048747470576562526573706F6E736500476574526573706F6E736500436C6F736500446973706F7365005835303943657274696669636174650043726561746500577269746500436F6D70696C657247656E6572617465644174747269627574650044656275676761626C654174747269627574650053716C50726F63656475726541747472696275746500436F6D70696C6174696F6E52656C61786174696F6E734174747269627574650052756E74696D65436F6D7061746962696C697479417474726962757465006765745F56616C7565007365745F457870656374313030436F6E74696E756500496E6465784F6600476574456E636F64696E670053716C537472696E67006765745F4C656E677468007365745F436F6E74656E744C656E6774680052656D6F7465436572746966696361746556616C69646174696F6E43616C6C6261636B007365745F536572766572436572746966696361746556616C69646174696F6E43616C6C6261636B0053514C434C525F5265717569736963616F5F5765622E646C6C006765745F49734E756C6C007365745F536563757269747950726F746F636F6C0044735F55726C00476574526573706F6E736553747265616D004765745265717565737453747265616D0053797374656D005472696D0053716C426F6F6C65616E0058353039436861696E004E616D6556616C7565436F6C6C656374696F6E00576562486561646572436F6C6C656374696F6E004170706C69636174696F6E457863657074696F6E0044735F436F64696669636163616F0073747057735F5265717569736963616F0044735F4D65746F646F00436861720053747265616D52656164657200546578745265616465720053657276696365506F696E744D616E61676572004D6963726F736F66742E53716C5365727665722E536572766572002E63746F72002E6363746F720053797374656D2E446961676E6F73746963730053797374656D2E52756E74696D652E436F6D70696C6572536572766963657300446562756767696E674D6F6465730053797374656D2E446174612E53716C54797065730053746F72656450726F636564757265730053797374656D2E53656375726974792E43727970746F6772617068792E5835303943657274696669636174657300476574427974657300537472696E6753706C69744F7074696F6E730044735F506172616D6574726F730044735F48656164657273006765745F486561646572730053736C506F6C6963794572726F7273004F626A6563740053797374656D2E4E6574006F705F496D706C696369740053706C69740044735F416363657074007365745F4163636570740048747470576562526571756573740051745F536567756E646F735F54696D656F7574007365745F54696D656F75740053797374656D2E54657874006F705F457175616C6974790053797374656D2E4E65742E53656375726974790049734E756C6C4F72456D70747900466C5F417574656E746963615F50726F7879000000010007470045005400000B5500540046002D0038000111680074007400700073003A002F002F0000053A003A00000950004F005300540000075000550054000000000091D3434B91A6944B9944F25BAF4B39B0000420010108032000010520010111112C07210E0E0E0E0E0E0E0E0208021229020202021D0E08081D0E0E0E0202020E1D05122D1231122D0212351239032000020320000E02060E03200008040001020E05000112550E042001010E042001080E040001010205000101115D052002011C180500010112410620011D0E1D030820021D0E1D0E11650420001269052002010E0E050002020E0E04000012710520011D050E042001010A042000122D072003011D050808042000127905000112710E07200201122D1271050001111D0E0307010208B77A5C561934E0890306120C0306124118000A01111D111D111D111D111D111D1121111D112510111D030000010A2004021C12451249114D0801000800000000001E01000100540216577261704E6F6E457863657074696F6E5468726F7773010801000701000000000401000000000000000000EB85E45D00000000020000001C0100003C2F00003C110000525344538863FD7F0DBEED47BBE2FD478149B89501000000433A5C55736572735C6469726365755C736F757263655C7265706F735C53514C434C525F5265717569736963616F5F5765625C53514C434C525F5265717569736963616F5F5765625C6F626A5C44656275675C53514C434C525F5265717569736963616F5F5765622E70646200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000008030000000000000000000009A3000000020000000000000000000000000000000000000000000008C300000000000000000000000005F436F72446C6C4D61696E006D73636F7265652E646C6C0000000000FF2500200010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001001000000018000080000000000000000000000000000001000100000030000080000000000000000000000000000001000000000048000000584000007C02000000000000000000007C0234000000560053005F00560045005200530049004F004E005F0049004E0046004F0000000000BD04EFFE00000100000000000000000000000000000000003F000000000000000400000002000000000000000000000000000000440000000100560061007200460069006C00650049006E0066006F00000000002400040000005400720061006E0073006C006100740069006F006E00000000000000B004DC010000010053007400720069006E006700460069006C00650049006E0066006F000000B801000001003000300030003000300034006200300000002C0002000100460069006C0065004400650073006300720069007000740069006F006E000000000020000000300008000100460069006C006500560065007200730069006F006E000000000030002E0030002E0030002E003000000054001A00010049006E007400650072006E0061006C004E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C0000002800020001004C006500670061006C0043006F0070007900720069006700680074000000200000005C001A0001004F0072006900670069006E0061006C00460069006C0065006E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C000000340008000100500072006F006400750063007400560065007200730069006F006E00000030002E0030002E0030002E003000000038000800010041007300730065006D0062006C0079002000560065007200730069006F006E00000030002E0030002E0030002E0030000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003000000C000000AC3000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000,
    @hash varbinary(64);

SET @hash = HASHBYTES('SHA2_512', @asmBin);


-- Apago os objetos desse post, caso já tenham sido criados
IF (OBJECT_ID('dbo.stpWs_Requisicao') IS NOT NULL) DROP PROCEDURE dbo.stpWs_Requisicao;
IF (EXISTS(SELECT NULL FROM sys.trusted_assemblies WHERE [description] = @clrName)) EXEC sys.sp_drop_trusted_assembly @hash = @hash;
IF (EXISTS(SELECT NULL FROM sys.assemblies WHERE [name] = @clrName)) DROP ASSEMBLY [SQLCLR_Requisicao_Web]

-- Crio o assembly no banco
CREATE ASSEMBLY [SQLCLR_Requisicao_Web]
    AUTHORIZATION [dbo]
    FROM 0x4D5A90000300000004000000FFFF0000B800000000000000400000000000000000000000000000000000000000000000000000000000000000000000800000000E1FBA0E00B409CD21B8014CCD21546869732070726F6772616D2063616E6E6F742062652072756E20696E20444F53206D6F64652E0D0D0A2400000000000000504500004C010300EB85E45D0000000000000000E00022200B013000001200000006000000000000AA300000002000000040000000000010002000000002000004000000000000000600000000000000008000000002000000000000030060850000100000100000000010000010000000000000100000000000000000000000583000004F00000000400000D802000000000000000000000000000000000000006000000C000000202F00001C0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000200000080000000000000000000000082000004800000000000000000000002E74657874000000B0100000002000000012000000020000000000000000000000000000200000602E72737263000000D8020000004000000004000000140000000000000000000000000000400000402E72656C6F6300000C00000000600000000200000018000000000000000000000000000040000042000000000000000000000000000000008C30000000000000480000000200050034240000EC0A000001000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001B3005003003000001000011000F02280600000A2D090F02280700000A2B0572010000700A0F01280600000A2D090F01280700000A2B0572030000700B0F00280700000A0C7E0800000A0D0F03280600000A2D090F03280700000A2B05720B00007013040F04280600000A2D090F04280700000A2B05720100007013050F05280600000A2D090F05280700000A2B05720100007013060F07280600000A2D090F07280700000A2B05720100007013070F06280900000A2D090F06280A00000A2B011613080F08280B00000A2D090F08280C00000A2B021F1E13091104280D00000A130A110A2C07720B0000701304000008280E00000A740A000001130B110B076F0F00000A00110B110920E80300005A6F1000000A000872170000706F1100000A16FE0416FE01130C110C2C390017281200000A0020F00F0000281300000A007E02000004252D17267E01000004FE0605000006731400000A258002000004281500000A00001106280D00000A16FE01130D110D2C0C00110B11066F1600000A00001105280D00000A16FE01130E110E2C0C00110B11056F1700000A00001107280D00000A16FE01130F110F2C77001107178D1800000125161F7C9D6F1800000A131011108E6913111613122B4A00111011129A178D1400000125167229000070A2166F1900000A13131113169A6F1A00000A13141113179A6F1A00000A1315110B6F1B00000A111411156F1C00000A000011121758131211121111FE04131611162DAA001108131711172C02000007722F000070281D00000A2D0D077239000070281D00000A2C0B066F1E00000A16FE022B0116131811182C5100061319281F00000A11196F2000000A131A110B111A8E696A6F2100000A00110B6F2200000A131B00111B111A16111A8E696F2300000A00111B6F2400000A0000DE0D111B2C08111B6F2500000A00DC00110B6F2600000A740C000001131C00111C6F2700000A131D00111D14FE03131E111E2C2B00111D1104282800000A732900000A131F00111F6F2A00000A0D00DE0D111F2C08111F6F2500000A00DC0000DE0D111D2C08111D6F2500000A00DC00DE0D111C2C08111C6F2500000A00DC00DE1013200011206F2B00000A732C00000A7A0E0909282D00000A81070000012A417C000002000000770200001B000000920200000D0000000000000002000000D50200000C000000E10200000D0000000000000002000000B80200003A000000F20200000D0000000000000002000000AE02000054000000020300000D0000000000000000000000E30000002F02000012030000100000000E0000012202282E00000A002A2E730400000680010000042A00000013300100070000000200001100170A2B00062A0042534A4201000100000000000C00000076342E302E33303331390000000005006C00000070030000237E0000DC0300007805000023537472696E67730000000054090000440000002355530098090000100000002347554944000000A80900004401000023426C6F620000000000000002000001571502000902000000FA01330016000001000000200000000300000002000000050000000E0000002E0000000500000002000000010000000300000001000000000096020100000000000600B101EE030600D101EE0306008701DB030F000E0400000600C204FA020A009B01B3030A0023021D040A0006031D040A0023001D040E00FB04C9040600F30256000E002501C90406008703560006004E03FA0206006C01EE030E004A02420506004F0143040E00110343040E00B204420506002602FA020E00FF04C9040E009F03C9040E00F100C90406008203FA0206007A04FA020E002F03C9040E001B03A50006001A022A050600E500FA020E002901C90406009403560006004303FA02000000004D0000000000010001000100100032040000150001000100032110009D00000015000100030036003500DC0016000100E00050200000000096006703E40001000824000000008618CE0306000B001124000000009118D403FD000B000824000000008618CE0306000B0020240000000083000A0001010B0000000100D002000002007803000003008D0400000400580300000500E604000006000601000007006405000008009B04000009000A0502000A006000000001003900000002003E000000030043000000040048000900CE0301001100CE0306001900CE030A003100CE0306007900CE0306003900B0023D003900EF014100A1005E0545004100B0023D004100EF013D004900B0023D004900EF014800A10056054C00A9005F015100A900CE005700A9001E050100A1000F025C00B100F9016100B100BB0266008100CE036C00B1006E027200A900150157005100F0045700A100E0047800A100E0047F00A10001034100A900A6048800D900A1008D00A10036059300A1002D024800E1002C009900E10071049E00A9003802A400A900E902A90059006601AE00590041010600E90047010600A9003501B600F100D702A900E1001702BB006900CE03C100F900C40041007100D90041000101CE0357003900D404C9002900CE030600200023003D012E000B000C012E00130015012E001B00340163002B003D011000CF000480000000000000000000000000000000007E000000040000000000000000000000D300940000000000040000000000000000000000D300720000000000040000000000000000000000D300FA0200000000030002000000003C3E395F5F305F30003C73747057735F5265717569736963616F3E625F5F305F300053716C496E743332006765745F55544638003C3E39003C70303E003C70313E003C70323E003C70333E003C4D6F64756C653E0053797374656D2E494F0044735F5265746F726E6F5F4F55545055540053797374656D2E446174610053514C434C525F5265717569736963616F5F576562006D73636F726C6962003C3E63004164640053797374656D2E436F6C6C656374696F6E732E5370656369616C697A65640052656164546F456E64007365745F4D6574686F64006765745F4D6573736167650049446973706F7361626C6500536563757269747950726F746F636F6C547970650044735F436F6E74656E7454797065007365745F436F6E74656E74547970650048747470576562526573706F6E736500476574526573706F6E736500436C6F736500446973706F7365005835303943657274696669636174650043726561746500577269746500436F6D70696C657247656E6572617465644174747269627574650044656275676761626C654174747269627574650053716C50726F63656475726541747472696275746500436F6D70696C6174696F6E52656C61786174696F6E734174747269627574650052756E74696D65436F6D7061746962696C697479417474726962757465006765745F56616C7565007365745F457870656374313030436F6E74696E756500496E6465784F6600476574456E636F64696E670053716C537472696E67006765745F4C656E677468007365745F436F6E74656E744C656E6774680052656D6F7465436572746966696361746556616C69646174696F6E43616C6C6261636B007365745F536572766572436572746966696361746556616C69646174696F6E43616C6C6261636B0053514C434C525F5265717569736963616F5F5765622E646C6C006765745F49734E756C6C007365745F536563757269747950726F746F636F6C0044735F55726C00476574526573706F6E736553747265616D004765745265717565737453747265616D0053797374656D005472696D0053716C426F6F6C65616E0058353039436861696E004E616D6556616C7565436F6C6C656374696F6E00576562486561646572436F6C6C656374696F6E004170706C69636174696F6E457863657074696F6E0044735F436F64696669636163616F0073747057735F5265717569736963616F0044735F4D65746F646F00436861720053747265616D52656164657200546578745265616465720053657276696365506F696E744D616E61676572004D6963726F736F66742E53716C5365727665722E536572766572002E63746F72002E6363746F720053797374656D2E446961676E6F73746963730053797374656D2E52756E74696D652E436F6D70696C6572536572766963657300446562756767696E674D6F6465730053797374656D2E446174612E53716C54797065730053746F72656450726F636564757265730053797374656D2E53656375726974792E43727970746F6772617068792E5835303943657274696669636174657300476574427974657300537472696E6753706C69744F7074696F6E730044735F506172616D6574726F730044735F48656164657273006765745F486561646572730053736C506F6C6963794572726F7273004F626A6563740053797374656D2E4E6574006F705F496D706C696369740053706C69740044735F416363657074007365745F4163636570740048747470576562526571756573740051745F536567756E646F735F54696D656F7574007365745F54696D656F75740053797374656D2E54657874006F705F457175616C6974790053797374656D2E4E65742E53656375726974790049734E756C6C4F72456D70747900466C5F417574656E746963615F50726F7879000000010007470045005400000B5500540046002D0038000111680074007400700073003A002F002F0000053A003A00000950004F005300540000075000550054000000000091D3434B91A6944B9944F25BAF4B39B0000420010108032000010520010111112C07210E0E0E0E0E0E0E0E0208021229020202021D0E08081D0E0E0E0202020E1D05122D1231122D0212351239032000020320000E02060E03200008040001020E05000112550E042001010E042001080E040001010205000101115D052002011C180500010112410620011D0E1D030820021D0E1D0E11650420001269052002010E0E050002020E0E04000012710520011D050E042001010A042000122D072003011D050808042000127905000112710E07200201122D1271050001111D0E0307010208B77A5C561934E0890306120C0306124118000A01111D111D111D111D111D111D1121111D112510111D030000010A2004021C12451249114D0801000800000000001E01000100540216577261704E6F6E457863657074696F6E5468726F7773010801000701000000000401000000000000000000EB85E45D00000000020000001C0100003C2F00003C110000525344538863FD7F0DBEED47BBE2FD478149B89501000000433A5C55736572735C6469726365755C736F757263655C7265706F735C53514C434C525F5265717569736963616F5F5765625C53514C434C525F5265717569736963616F5F5765625C6F626A5C44656275675C53514C434C525F5265717569736963616F5F5765622E70646200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000008030000000000000000000009A3000000020000000000000000000000000000000000000000000008C300000000000000000000000005F436F72446C6C4D61696E006D73636F7265652E646C6C0000000000FF2500200010000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001001000000018000080000000000000000000000000000001000100000030000080000000000000000000000000000001000000000048000000584000007C02000000000000000000007C0234000000560053005F00560045005200530049004F004E005F0049004E0046004F0000000000BD04EFFE00000100000000000000000000000000000000003F000000000000000400000002000000000000000000000000000000440000000100560061007200460069006C00650049006E0066006F00000000002400040000005400720061006E0073006C006100740069006F006E00000000000000B004DC010000010053007400720069006E006700460069006C00650049006E0066006F000000B801000001003000300030003000300034006200300000002C0002000100460069006C0065004400650073006300720069007000740069006F006E000000000020000000300008000100460069006C006500560065007200730069006F006E000000000030002E0030002E0030002E003000000054001A00010049006E007400650072006E0061006C004E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C0000002800020001004C006500670061006C0043006F0070007900720069006700680074000000200000005C001A0001004F0072006900670069006E0061006C00460069006C0065006E0061006D0065000000530051004C0043004C0052005F005200650071007500690073006900630061006F005F005700650062002E0064006C006C000000340008000100500072006F006400750063007400560065007200730069006F006E00000030002E0030002E0030002E003000000038000800010041007300730065006D0062006C0079002000560065007200730069006F006E00000030002E0030002E0030002E0030000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003000000C000000AC3000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
    WITH PERMISSION_SET = EXTERNAL_ACCESS;


-- Adiciono o assembly como confiável
EXEC sys.sp_add_trusted_assembly @hash = @hash,
                                 @description = @clrName;


-- Desativo o modo TRUSTWORTHY do banco por motivos de segurança
ALTER DATABASE Base_Teste SET TRUSTWORTHY OFF
GO


-- Crio a Stored Procedure "stpWs_Requisicao"
CREATE PROCEDURE [dbo].[stpWs_Requisicao] @Ds_Url NVARCHAR (MAX), @Ds_Metodo NVARCHAR (MAX), @Ds_Parametros NVARCHAR (MAX), @Ds_Codificacao NVARCHAR (MAX), @Ds_Accept NVARCHAR (MAX), @Ds_ContentType NVARCHAR (MAX), @Fl_Autentica_Proxy BIT, @Ds_Headers NVARCHAR (MAX), @Qt_Segundos_Timeout INT, @Ds_Retorno_OUTPUT NVARCHAR (MAX) OUTPUT
AS EXTERNAL NAME [SQLCLR_Requisicao_Web].[StoredProcedures].[stpWs_Requisicao]

C# source code of stpWs_Requisicao:

If you don't want to create the assembly I made available above and want to program your SQLCLR yourself in Visual Studio and then publish it in the database, I will make the C# source code of this Stored Procedure available.

using System;
using System.Data.SqlTypes;
using System.Net;
using System.IO;
using System.Text;

public partial class StoredProcedures
{
    [Microsoft.SqlServer.Server.SqlProcedure]
    public static void stpWs_Requisicao(SqlString Ds_Url, SqlString Ds_Metodo, SqlString Ds_Parametros, SqlString Ds_Codificacao, SqlString Ds_Accept, SqlString Ds_ContentType, SqlBoolean Fl_Autentica_Proxy, SqlString Ds_Headers, SqlInt32 Qt_Segundos_Timeout, out SqlString Ds_Retorno_OUTPUT)
    {


        var parametros = (Ds_Parametros.IsNull) ? "" : Ds_Parametros.Value;
        var metodo = (Ds_Metodo.IsNull) ? "GET" : Ds_Metodo.Value;
        var url = Ds_Url.Value;
        var feedData = string.Empty;
        var encoding = (Ds_Codificacao.IsNull) ? "UTF-8" : Ds_Codificacao.Value;
        var accept = (Ds_Accept.IsNull) ? "" : Ds_Accept.Value;
        var contentType = (Ds_ContentType.IsNull) ? "" : Ds_ContentType.Value;
        var dsHeaders = (Ds_Headers.IsNull) ? "" : Ds_Headers.Value;
        var autenticaProxy = (!Fl_Autentica_Proxy.IsNull) && Fl_Autentica_Proxy.Value;
        var timeout = (Qt_Segundos_Timeout.IsNull) ? 30 : Qt_Segundos_Timeout.Value;


        if (string.IsNullOrEmpty(encoding))
            encoding = "UTF-8";


        try
        {

            var request = (HttpWebRequest)WebRequest.Create(url);
            request.Method = metodo;
            request.Timeout = timeout * 1000;


            if (url.IndexOf("https://") >= 0)
            {
                ServicePointManager.Expect100Continue = true;
                ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls | SecurityProtocolType.Tls11 | SecurityProtocolType.Tls12 | SecurityProtocolType.Ssl3;
                ServicePointManager.ServerCertificateValidationCallback = delegate { return true; };
            }


            if (!string.IsNullOrEmpty(contentType))
            {
                request.ContentType = contentType;
            }


            if (!string.IsNullOrEmpty(accept))
            {
                request.Accept = accept;
            }


            if (!string.IsNullOrEmpty(dsHeaders))
            {

                var cabecalhos = dsHeaders.Split('|');
                var numeroCabecalhos = cabecalhos.Length;

                for (var i = 0; i < numeroCabecalhos; i++)
                {

                    var cabecalho = cabecalhos[i].Split(new string[] { "::" }, StringSplitOptions.None);
                    var descricao = cabecalho[0].Trim();
                    var valor = cabecalho[1].Trim();

                    request.Headers.Add(descricao, valor);
                }

            }


            if (autenticaProxy)
            {

                //if (!string.IsNullOrEmpty(Servidor.Ds_Proxy_Url))
                    //request.Proxy = new WebProxy(Servidor.Ds_Proxy_Url, Servidor.Ds_Proxy_Porta) { Credentials = new NetworkCredential(Servidor.Ds_Proxy_Usuario, Servidor.Ds_Proxy_Senha, Servidor.Ds_Proxy_Dominio) };

            }


            if ((metodo == "POST" || metodo == "PUT") && parametros.Length > 0)
            {
                var data = parametros;
                var dataStream = Encoding.UTF8.GetBytes(data);

                request.ContentLength = dataStream.Length;

                using (var newStream = request.GetRequestStream())
                {
                    newStream.Write(dataStream, 0, dataStream.Length);
                    newStream.Close();
                }
            }


            using (var response = (HttpWebResponse)request.GetResponse())
            {
                using (var stream = response.GetResponseStream())
                {
                    if (stream != null)
                    {
                        using (var streamReader = new StreamReader(stream, Encoding.GetEncoding(encoding)))
                        {
                            feedData = streamReader.ReadToEnd();
                        }
                    }
                }
            }


        }
        catch (Exception ex)
        {
            throw new ApplicationException(ex.Message);
        }

        Ds_Retorno_OUTPUT = feedData;

    }

};

Sending messages to Whatsapp with SQLCLR

Click here to view the content
Now that I have demonstrated how to connect to the API, making it possible to send messages to Whatsapp with any programming language, I will demonstrate how we can do this using SQL Server. For those who already follow my blog, you know that there are at least two easy ways to do this: Using SQLCLR and OLE Automation.

Sending private messages via Whatsapp

The first test to be carried out is by sending private messages to a contact. Its use is very simple:

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Destino VARCHAR(20) = 'telefone_destino', -- FORMATO: ddnumero Ex: 11988543306
    @Mensagem VARCHAR(MAX) = 'Olá! \nEsta é uma mensagem de teste.',
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- PARÂMETROS FIXOS
DECLARE
    @Ds_Retorno_OUTPUT NVARCHAR(MAX),
    @Url VARCHAR(MAX) = 'http://api.meuaplicativo.vip:13005/services/message_send?line=5527981049976&destiny=' + @Destino + '&text=' + @Mensagem,
    @source VARBINARY(MAX) = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha),
    @Paramatros VARCHAR(MAX) = 'App=NetiZap Consumers 1.0&AccessKey=' + @Chave,
    @Autorizacao VARCHAR(500),
    @Cabecalhos VARCHAR(MAX)


-- Gero a string base64 com o usuário e senha da API
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')
SET @Cabecalhos = 'Authorization:: ' + @Autorizacao


-- Faço a chamada à API
EXEC dbo.stpWs_Requisicao
    @Ds_Url = @Url, -- nvarchar(max)
    @Ds_Metodo = N'POST', -- nvarchar(max)
    @Ds_Parametros = @Paramatros, -- nvarchar(max)
    @Ds_Codificacao = N'utf-8', -- nvarchar(max)
    @Ds_Accept = N'', -- nvarchar(max)
    @Ds_ContentType = N'application/x-www-form-urlencoded', -- nvarchar(max)
    @Fl_Autentica_Proxy = 0, -- bit
    @Ds_Headers = @Cabecalhos, -- nvarchar(max)
    @Qt_Segundos_Timeout = 30, -- int
    @Ds_Retorno_OUTPUT = @Ds_Retorno_OUTPUT OUTPUT -- nvarchar(max)


-- Mostro o retorno da requisição na tela
SELECT @Ds_Retorno_OUTPUT

Result:

How the message arrives on the cell phone:

How to retrieve the list of available groups

To list the groups available in your account, you can use the script below. To send a message to the group, simply use the same private message sending script and replace the recipient's phone number with the group ID returned below.

The JSON treatment was done with the OPENJSON function, available from SQL Server 2016. If your version is older than that, you can replace it with a simple SELECT in the variable and manually identify the id of the desired group. If you want to know more about handling JSON strings, take a look at my article SQL Server 2016 – Using native JSON support (JSON_VALUE, JSON_QUERY, OPENJSON, FOR JSON, ISJSON, JSON_MODIFY).

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- PARÂMETROS FIXOS
DECLARE
    @Ds_Retorno_OUTPUT NVARCHAR(MAX),
    @Url VARCHAR(MAX) = 'http://api.meuaplicativo.vip:13005/services/group_search?line=5527981049976&AccessKey=' + @Chave,
    @source VARBINARY(MAX) = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha),
    @Autorizacao VARCHAR(500),
    @Cabecalhos VARCHAR(MAX)


-- Gero a string base64 com o usuário e senha da API
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')
SET @Cabecalhos = 'Authorization:: ' + @Autorizacao


-- Lista os grupos disponíveis para a minha conta
EXEC dbo.stpWs_Requisicao
    @Ds_Url = @Url, -- nvarchar(max)
    @Ds_Metodo = N'GET', -- nvarchar(max)
    @Ds_Parametros = NULL, -- nvarchar(max)
    @Ds_Codificacao = N'utf-8', -- nvarchar(max)
    @Ds_Accept = N'', -- nvarchar(max)
    @Ds_ContentType = N'application/x-www-form-urlencoded', -- nvarchar(max)
    @Fl_Autentica_Proxy = 0, -- bit
    @Ds_Headers = @Cabecalhos, -- nvarchar(max)
    @Qt_Segundos_Timeout = 30, -- int
    @Ds_Retorno_OUTPUT = @Ds_Retorno_OUTPUT OUTPUT -- nvarchar(max)


SELECT
    conteudo.id,
    conteudo.descricao
FROM
    OPENJSON(@Ds_Retorno_OUTPUT, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo

Result:

How to send messages to a Whatsapp group

Now that I've demonstrated how to send a private message and how to list groups, let's combine the two and send messages to a group!

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Destino VARCHAR(50),
    @Mensagem VARCHAR(MAX) = 'Olá! \nEsta é uma mensagem de *teste* para o ~grupo~.',
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- PARÂMETROS FIXOS
DECLARE
    @Ds_Retorno_OUTPUT NVARCHAR(MAX),
    @Url_Mensagem VARCHAR(MAX),
    @Url_Grupo VARCHAR(MAX) = 'http://api.meuaplicativo.vip:13005/services/group_search?line=5527981049976&AccessKey=' + @Chave,
    @source VARBINARY(MAX) = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha),
    @Paramatros VARCHAR(MAX) = 'App=NetiZap Consumers 1.0&AccessKey=' + @Chave,
    @Autorizacao VARCHAR(500),
    @Cabecalhos VARCHAR(MAX)


-- Gero a string base64 com o usuário e senha da API
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')
SET @Cabecalhos = 'Authorization:: ' + @Autorizacao


-- Faço a chamada à API para recuperar a lista dos grupos
EXEC dbo.stpWs_Requisicao
    @Ds_Url = @Url_Grupo, -- nvarchar(max)
    @Ds_Metodo = N'GET', -- nvarchar(max)
    @Ds_Parametros = NULL, -- nvarchar(max)
    @Ds_Codificacao = N'utf-8', -- nvarchar(max)
    @Ds_Accept = N'', -- nvarchar(max)
    @Ds_ContentType = N'application/x-www-form-urlencoded', -- nvarchar(max)
    @Fl_Autentica_Proxy = 0, -- bit
    @Ds_Headers = @Cabecalhos, -- nvarchar(max)
    @Qt_Segundos_Timeout = 30, -- int
    @Ds_Retorno_OUTPUT = @Ds_Retorno_OUTPUT OUTPUT -- nvarchar(max)


-- Gravo a lista dos grupos numa tabela temporária
IF (OBJECT_ID('tempdb..#Grupos') IS NOT NULL) DROP TABLE #Grupos
SELECT
    conteudo.id,
    conteudo.descricao
INTO
    #Grupos
FROM
    OPENJSON(@Ds_Retorno_OUTPUT, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo


SET @Ds_Retorno_OUTPUT = NULL
SET @Destino = (SELECT TOP(1) id FROM #Grupos WHERE descricao = 'Teste API')
SET @Url_Mensagem = 'http://api.meuaplicativo.vip:13005/services/message_send?line=5527981049976&destiny=' + @Destino + '&text=' + @Mensagem


-- Faço a chamada à API para enviar a mensagem para o grupo
EXEC dbo.stpWs_Requisicao
    @Ds_Url = @Url_Mensagem, -- nvarchar(max)
    @Ds_Metodo = N'POST', -- nvarchar(max)
    @Ds_Parametros = @Paramatros, -- nvarchar(max)
    @Ds_Codificacao = N'utf-8', -- nvarchar(max)
    @Ds_Accept = N'', -- nvarchar(max)
    @Ds_ContentType = N'application/x-www-form-urlencoded', -- nvarchar(max)
    @Fl_Autentica_Proxy = 0, -- bit
    @Ds_Headers = @Cabecalhos, -- nvarchar(max)
    @Qt_Segundos_Timeout = 30, -- int
    @Ds_Retorno_OUTPUT = @Ds_Retorno_OUTPUT OUTPUT -- nvarchar(max)


-- Mostro o retorno da requisição na tela
SELECT @Ds_Retorno_OUTPUT

Group result:

How to retrieve the list of available streams for your account

Almost identical to the account group listing, the script below allows you to list the broadcast lists available for sending via the API:

-- ALTERAR CONFORME NECESSIDADE
DECLARE
    @Chave VARCHAR(100) = 'Voz5dWkr5EEhBAbYuwJ2',
    @Usuario VARCHAR(100) = 'user',
    @Senha VARCHAR(100) = 'api'


-- PARÂMETROS FIXOS
DECLARE
    @Ds_Retorno_OUTPUT NVARCHAR(MAX),
    @Url VARCHAR(MAX) = 'http://api.meuaplicativo.vip:13005/services/broadcast_search?line=5527981049976&AccessKey=' + @Chave,
    @source VARBINARY(MAX) = CONVERT(VARBINARY(MAX), @Usuario + ':' + @Senha),
    @Autorizacao VARCHAR(500),
    @Cabecalhos VARCHAR(MAX)


-- Gero a string base64 com o usuário e senha da API
SET @Autorizacao = 'Basic ' + CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)')
SET @Cabecalhos = 'Authorization:: ' + @Autorizacao


-- Lista os grupos disponíveis para a minha conta
EXEC dbo.stpWs_Requisicao
    @Ds_Url = @Url, -- nvarchar(max)
    @Ds_Metodo = N'GET', -- nvarchar(max)
    @Ds_Parametros = NULL, -- nvarchar(max)
    @Ds_Codificacao = N'utf-8', -- nvarchar(max)
    @Ds_Accept = N'', -- nvarchar(max)
    @Ds_ContentType = N'application/x-www-form-urlencoded', -- nvarchar(max)
    @Fl_Autentica_Proxy = 0, -- bit
    @Ds_Headers = @Cabecalhos, -- nvarchar(max)
    @Qt_Segundos_Timeout = 30, -- int
    @Ds_Retorno_OUTPUT = @Ds_Retorno_OUTPUT OUTPUT -- nvarchar(max)


SELECT
    conteudo.id,
    conteudo.descricao
FROM
    OPENJSON(@Ds_Retorno_OUTPUT, '$')
    WITH (
        [root] NVARCHAR(MAX) AS JSON
    ) AS elemento
    CROSS APPLY OPENJSON(elemento.[root]) WITH(
        id VARCHAR(200),
        descricao VARCHAR(500)
    ) AS conteudo

Result:

So, did you like this tip? Now you can create alerts, monitoring, send attachments, messages to groups, broadcast lists and even bots using this API and fully integrated with your database.
Big hug and see you next time!
